Quick Details

  • Type: Flexographic Printer
  • Condition: New
  • Plate Type: Flatbed Printer
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: XIAOHAI
  • Model Number: ZBS-320
  • Usage: Label Printer
  • Automatic Grade: Automatic
  • Color & Page: Multicolor
  • Voltage: 380
  • Gross Power: 500W
  • Dimensions(L*W*H): 2.25mX1.35m X2.8m
  • Weight: 500kg
  • Certification: ce
  • After-sales Service Provided: Engineers available to service machinery overseas
  • function: pringting label

Packaging & Delivery

Packaging Details wooden case
Delivery Time Shipped in 30 days after payment

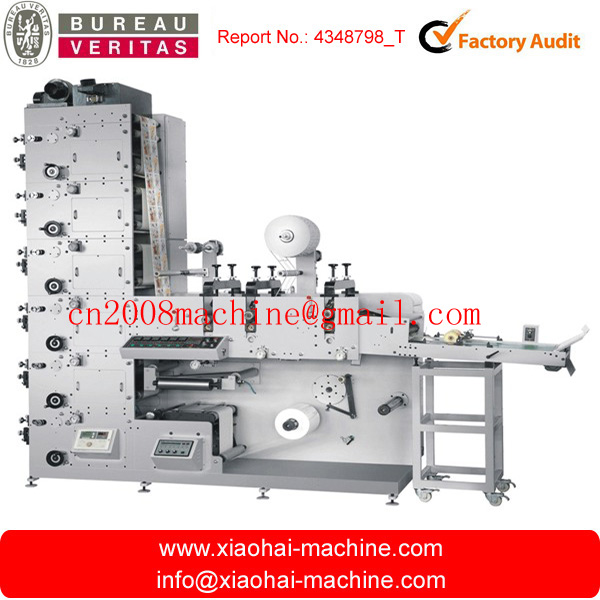

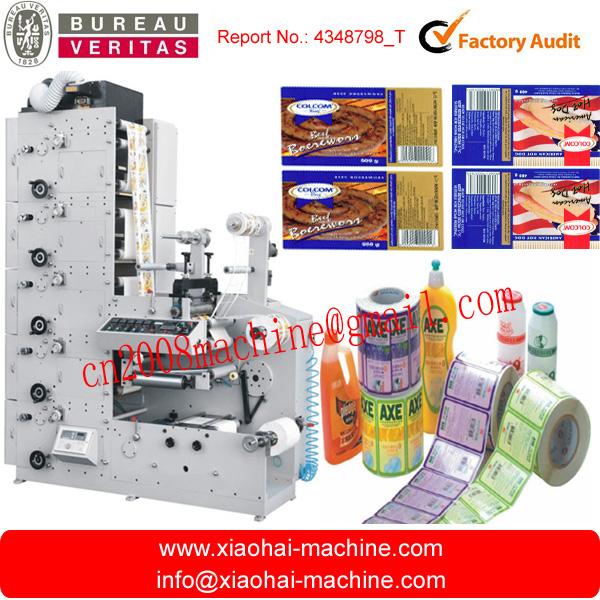

ZBS-320G 5 colors label flexo printing machine:







label flexo printing machine is used for printing roll paper,roll coated paper and plastic film etc material.

It is idea equipment for printing the label.

Features:

ZBS-G type contains ZBS-320G, ZBS-450G

This machine features:

1.Adopt the ceramic anilox cylinder to transfer the ink.
2.Each printing unit adopts 3600 plate-adjustment.
3.Three die-cutting stations, the first and second die-cutting station can do double sides working,the third die-cutting station can be used as sheeter.
4.Computerized web-guiding system is installed in the front of print-ing unit, it ensures the material always in the right position.(standard configuration)
5.After sheeting in the third die-cutting station, conveyor belt can output the products orderly.(option)
6.Unwinding and rewinding tension are auto-controlled by magnetic power,two rewinders is possible in this machine.
7.Video inspecting system is an option, it can watch the printing quality when in high speed.
8.The ink rollers will be separated from the printing roller, and keep running when the machine stops.
9.Main machine inverter is imported.
10.The machine can finish material-feeding, printing, varmishing, drying, laminating, die-cutting, rewinding and sheeter in a lump. It is an ideal machine for printing note and top-grade adhesive label.



Main parameters:



Model

ZBS-320G

Printing speed

55m/min

Printing color

4colours

Max. width of paper

320mm

Max .printing width

310mm

Max. unwinder/rewinder diameter

650mm

Printing length

Z56-Z112(177.8-355.5mm)

Thickness of flexo plate

1.7mm or 1.14mm

Precision of chromatography

±0.1mm

Dimensions

2.6mX1.2m X2.6m

Machine weight

About 2600kg







OPTIONAL PARTS:



1, Sheeter conveyer



2, UV dryer



3, Separate unwinder shelf (diameter up to 900mm)



4, Corona treater



5, Cold stamping unit



6, Video inspecting system



7, Safe cover for printing unit



8, Slitting unit with single rewinder or double rewinder



9, elctric hoist
