Face mask vertical integrated nose wire making machine

FOB Reference Price:Get Latest Price
$14,000.00 - $18,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XH
Model Number:
XH nose wire making machine
Voltage:
380V
Application:
Bar
Weight:
815KG
Certification:
CE
Screw Design:
Single-screw
Plastic Processed:
PE
Dimension(L*W*H):
2600*950*1250MM
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
10KW
Automatic Grade:
Automatic woking or nose wire machine
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden packing for nose wire machine.
Port
Ningbo,Shanghai
Lead Time :
20-30 days

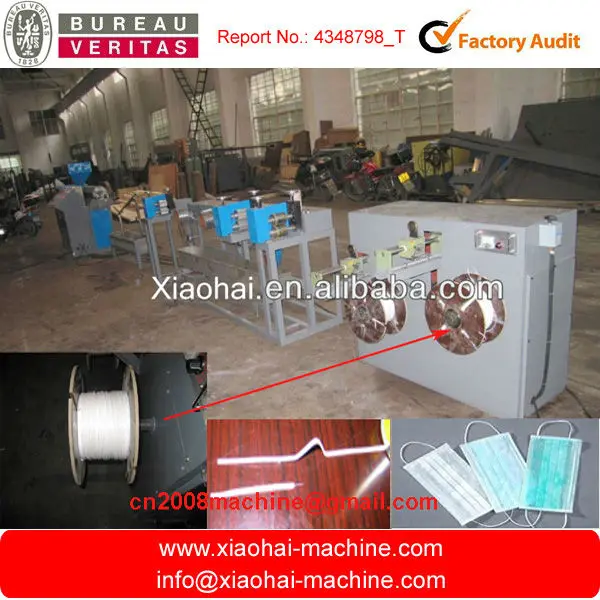

Nose wire machine



nose wire making machine.jpg







Nose wire machine Main parameter:

Screw diameter 55mm

Voltage:220v or 380v

Main motor power:5.5kw

Capacity :20kg/hour





Nose wire  machines including the extruder, water tank,dragger,rewinder.



Plastic nose bar making machine component:

extruder



Screw Diameter

65mm

Screw Ratio(L/D)

25:1

Output

20kg/h

Total Power

10KW

Weight Of Machine

815kg

Dimension(mm)

2600x950x1250mm

water tank

Dimension(mm)

1350x320x1000mm

Weight Of Machine

 150kg

Dragger

Front drag motor power

1.5kw

Back drag motor power

3kw

Weight Of Machine

180kg

Dimension(mm)

1100x650x1000mm

Screw Speed

10-80m/min

Rewinder

Rewinder Diameter

350mm

Speed

120m/min

Power of Main Motor

4KW

Weight Of Machine

200kg

Dimension(mm)

1200x900x1050mm



Plastic plus metal wire nose bar making machine component::
extruder

Screw Diameter

65mm

Screw Ratio(L/D)

25:1

Output

20kg/h

Total Power

10KW

Weight Of Machine

815kg

Dimension(mm)

2600x950x1250mm

water tank

Dimension(mm)

3000x350x1050mm

Weight Of Machine

 150kg

Dragger

Front drag motor power

1.5kw

Back drag motor power

3kw

Weight Of Machine

180kg

Dimension(mm)

1100x650x1000mm

Speed

10-110m/min

Rewinder

Rewinder Diameter

350mm

Speed

150m/min

Power of Main Motor

4KW

Weight Of Machine

200kg

Dimension(mm)

1200x900x1050mm



Feeding wire rack:

Dimension(mm)

600x500x600mm

Weight Of Machine

 150kg



Moving wire rack:

Dimension(mm)

500x500x1100mm

Weight Of Machine

 100kg
