Single Drinking straw wrapping machine

FOB Reference Price:Get Latest Price
$6,000.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Film
Packaging Material:
Paper, Plastic
Type:
Wrapping Machine, General
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220v
Power:
0.75kw
Place of Origin:
Zhejiang, China
Brand Name:
XIAO HAI
Model Number:
DB-1
Dimension(L*W*H):
2000X960X1600mm
Weight:
600KG
Certification:
Single Drinking straw wrapping machine
straw type::
drinking straw
Packing material::
Paper or Film
Machine Operation::
Automatic
Usage:
Outer
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
ningbo,shanghai,any china port
Lead Time :
Shipped in 30 days after payment

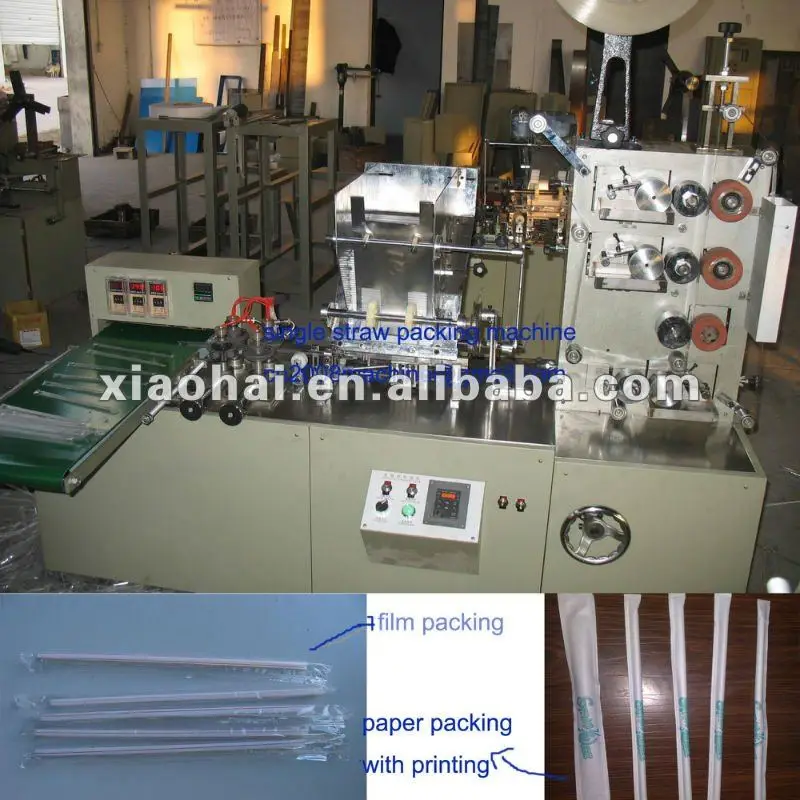

Single Drinking straw wrapping machine

can pack with film,paper with colors printing funcation.

straw can be straight straw,flexible straw





AUTOMATIC drinking straw packing machine





Usage:
1.
The machine is to pack the single straw.It can be used  paper or film to packing straight straw.flexible straw.spoon straw.milk tea straw,The machine provides a high packing rate ,and two-color printing capacity. It not only makes your straw packing operation easier,but also provides you with a high reliability.



2.This machine is a full automatic for packing single-straw into package machine. The machine is composed of motor, film supporting assembly(2 set),straw feeding section, sealing section, coiling section and electronic controlled system etc.The main drum always carrying a lot of straws in successive different operations. This provides a high packing rate, and incorporates an automatic. To complete filling in & packing at a time. It not only makes your straw packing operations easier, but provides you with a highly reliable.



3.Highlight:



1. Single drinking straw packing. printing,filling&packing,cutting at a time
2. Two color printing device.
3. Automatic product counting,product quantity per-set. Once the pre-set figure is reached, the machine will stop and an alarm will sound
4. Packing speed can be adjusted freely







Specification:



Model No.
DB-1
Material Suitable
Paper,plastic film
Max Diamter of Roll
340mm
Processing speed
250-450 pcs/min
Max.Width of Material

Paper:25-33mm
Plastic film:25-60mm

Straw diameter
φ3φ14mm
Straw wall thickness
0.15  0.25mm
Straw length
170-310mm
Main motor
1.5kw
Hopper motor
90w
Machine dimension
2000×960×1600mm
Machine weight
400kg





Remark:

We also can make the machine according to your specifications..



welcome to contact us
