HAS VIDEO paper coffee cup and plastic cup lid forming machine for dome lid,flat lid with cross

FOB Reference Price:Get Latest Price
$800.00 - $88,880.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DPP- 400F paper cup lid forming machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Plastic Thermoforming Machine
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
XIAO HAI
Voltage:
220v
Certification:
CE
Product Type:
Plastic Cup
Dimension(L*W*H):
2700x830x1450 mm
Plastic Type:
PP
Applicable Industries:
Manufacturing Plant
Key Selling Points:
High Productivity
Weight (T):
10 T
Max.Forming Height(mm):
200 mm
Air Pressure(MPa):
10 MPa
Forming Width (mm):
100 mm
Air Comsumption(L/min):
10 L/min
Forming Length (mm):
200 mm
Water Comsumption(L/min):
10 L/min
Heating Power (kW):
10 kW
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
ningbo,shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

HAS VIDEO paper coffee cup and plastic cup lid forming machine for dome lid,flat lid with cross







lid  machine.jpg

paper cup lid forming machine :



 Applicable Object: PS/PVC/PET Plastic cup lid,Hardware tray,food tray,pharmaceutical tray etc.



Main features

1. Compact structure, smooth moving, convenient operation and easy maintenance.

2. Infinitely variable frequency speed regulation, PLC circuit control panel.

3. Adjustable route, mould changing more easily.

4. It adopts manipulation grip to feeding, accurate and reliable synchronously.

5.Designing all mould according to customers’ requirements

 Technical Parameters:



Speed

15-32 times/min

Route adjustable scope

40-180mm

Material width

<430mm

Max. forming width

400mm

Max. Forming depth

Normal model 35mm    Deepen model 55mm

Upper and lower heating power

2.2kw(×2)

Motor power

1.5kw

Power

Three-phase four-wire

380V  50HZ(220V  60HZ)4.5KW

Pressure of water supply

0.2MPa

Water consumption

0.3m3/h(Tap water or recycle water)

Pump volumetric flow rate

0.2m3/min

Air pressure

0.5-0.7MPa

Overall dimension

2400×800×1560mm

Packing size

2150×1000×1750mm

Weight

Normal 850kg     Deep model 1000kg






 we also have PLASTIC CUP AND CONTAINER production line:
1.MX-700L plastic sheet extruder:use to produce PP,PS sheet from raw material.
2.CK660-B thermoforming machine:
feeding PP,PS sheet in this machine to produce cups,plates and other plastic container.
3.curling machine:
curling the edge of cup.  It’s according to your sample.
4.cup stacking machine:
use to stack the cup automatically. also you can choose worker to stack the cups.
5. F650 grinder/crusher:
it is used for recycle the waste sheet.
6.Mixer:
mixing the new material and the recycle material
7.cooling tower:
the sheet extruder MX-700L and MX660-B thermoforming machine running need the cool water for working.
8. Plastic cup lid making machine:
use to produce cup lid.
9.cup printing machine:
use to print picture/design on the cup.
10. counting and packing machine:
use to counting and packing the cup in plastic bag. also you can choose worker to count and pack the cups.
11. Air compressor:
extruder and thermoforming machine and stacking machine running need the air for working.

 lid  machine .jpg

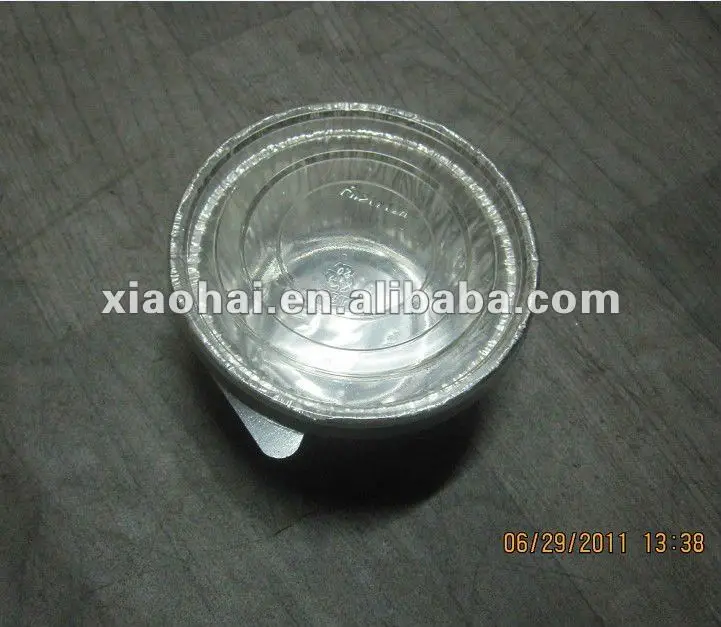

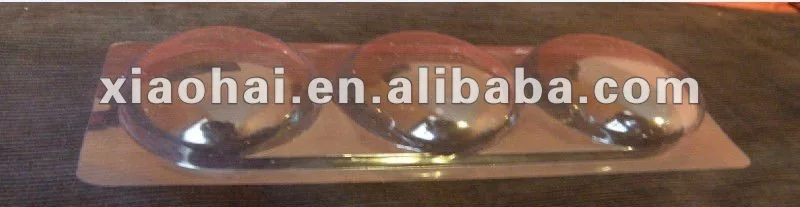

  products:



products.jpgcup lid 2.jpgcover.jpgcover 2.jpg



cup lid 3.jpgdome 1.jpgcup lid 4.jpgdome .jpg



Customer Bought This Machine,Also Have Interesting To Buy Following Machines:

1. PP PS Sheet Extruder To Make Sheet In Roll For Cup Making Machine

2. PP PS PET Cup Forming Machine ( Cup and Plate Ect )

3. Automatic Cup Stacking Inline Machine

4. Economy Type Cup Printing Machine

5. Luxuary Type Plastic Cup Printing Machine

6. Plastic Cup Counting And Packing In Bag Machine

7. Cup lid Making Machine
