PP U-Shape Drinking straw making machine for juice

FOB Reference Price:Get Latest Price
$1.00 - $111.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Other
Condition:
New
Product Type:
Plastic Pipe
Place of Origin:
Zhejiang, China
Brand Name:
XH
Model Number:
WG
Voltage:
220v
Power(W):
1.5kw
Dimension(L*W*H):
1500x1800x1600mm
Weight:
800kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case.
Port
Ningbo
Lead Time :
20 days

Specifications

1. FLEXIBLE drinking straw forming machine To make flexi end for the drinking straw
2. full automatic

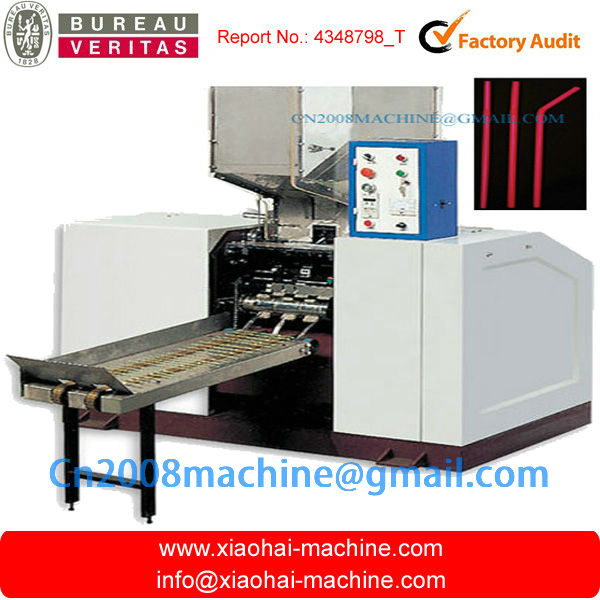

FLEXIBLE drinking straw forming machine





Usage:
1.
The machine is to make the straight straw to be flexible.

2.The entire operation, from product in-feed and forming to finished product out-feed, is automatically performed requiring the operator to add the material only.The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. As the main drum rotates, the straw passes through two rotary dies to receive die-pressed effect, is then compressed with two catches to form flexible. And delivered to the output conveyor automatically.The main drum always carrying 12 straws in successive different operations. This development represents a giant step forword for higher production of flexible straws.

3.Highlight:
High efficiency and high production rate.
Automatic product counting.
Product quantity pre-set. Once the pre-set figue is reached, the machine will stop and an alarm will sound, allowing added convenience for quantity packing into bags.
Automatic machine stop in the event of straw jamming.


Specification:



Model No.
WG-38WG-48WG-58
Processing speed200-300 pcs/min
Main motor1.5kw (inverter)
Specifications of StrawDiameter3.8mm4.8mm5.8mm
Length of straight straw165-245mm200-260mm200-260mm
Length of flexible straw150-230mm185-245mm185-245mm
Thickness of straw0.2±0.02mm0.15±0.02mm0.15±0.02mm
Top section length30-50mm
Length of flexible part8-11mm
Machine dimension1500×1800×1600mm
Machine weight1000kg





Remark:

We also can make the machine according to your specifications.
