Automatic milk drinking straw in line packing machine

FOB Reference Price:Get Latest Price
$1.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Beverage, Chemical, Commodity, Food, Machinery & Hardware
Packaging Material:
Plastic
Type:
Other
Condition:
New
Packaging Type:
Film
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
1.5KW
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
PB
Weight:
500kg
Dimension(L*W*H):
2000*960*1600mm
Certification:
CE ISO
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
ningbo
Lead Time :
Shipped in 30 days after payment

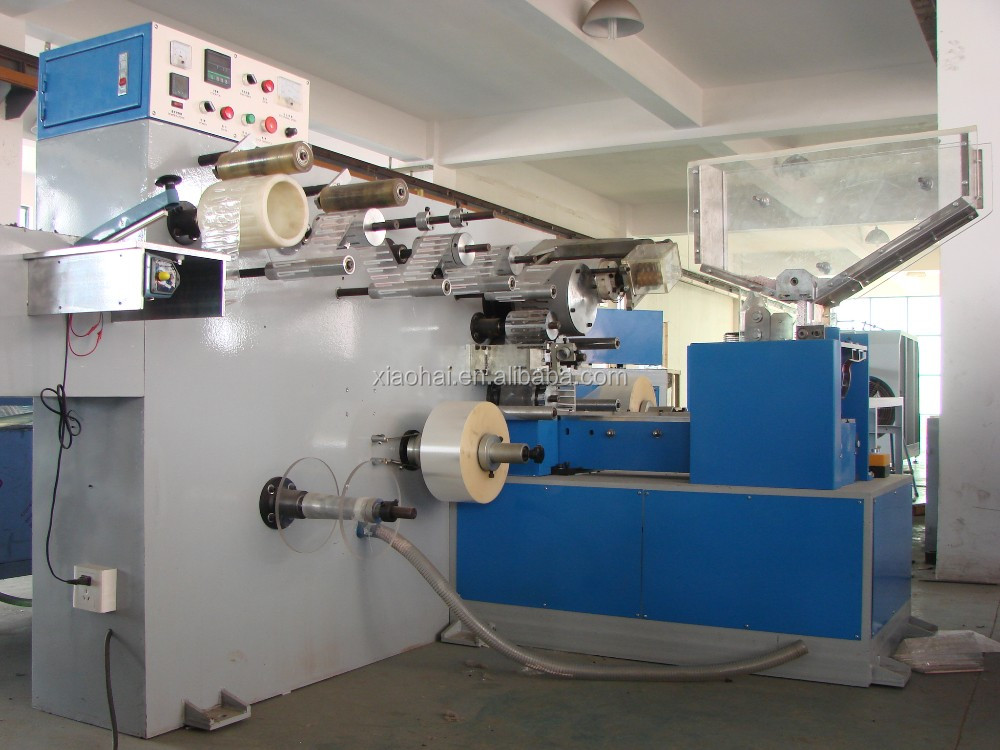

Automatic straw in line packing machine





Machine name:  Automatic straw in line packing machine

Usage:
1.

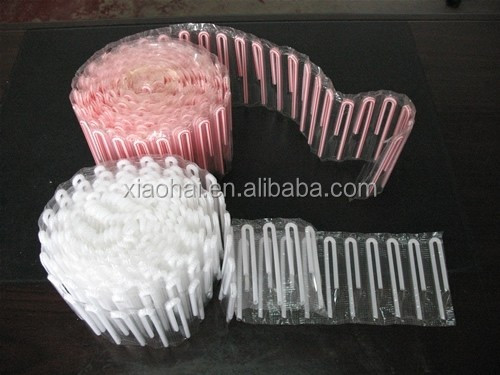

The machine is to pack the single straw in lines.

2.This machine is a full automatic for packing single-straw into package machine. The machine is composed of motor, film supporting assembly(2 set),straw feeding section, sealing section, coiling section and electronic controlled system etc.The main drum always carrying a lot of straws in successive different operations. This provides a high packing rate, and incorporates an automatic. To complete filling in & packing at a time. It not only makes your straw packing operations easier, but provides you with a highly reliable.

3.Highlight:
Single straw packing. To complete filling in & packing at a time
Automatic product counting, product quantity per-set. Once the pre-set value is reached, the machine will stop and an alarm will sound
Packing speed can be adjusted freely
Automatic machine stop when the package is missing the straw.


Specification:



Model No.
PB-1
Material Suitable
films can be heat-sealed
Max Diamter of Roll
340mm
Processing speed
500-600 pcs/min
Inside diameter of roll
75mm
Max.Width of film
230mm
Thickness of film
20u30u
Packing type
15mm(P)×110230mm(W)
Straw diameter
φ3φ7mm
Straw wall thickness
0.150.25mm
Straw length
90215mm(normal)
Machine dimension
2000×960×1600mm
Packing in wooden box dimension
1650×1150×1800mm
Machine weight
400kg





Remark:

We also can make the machine according to your specifications.
