HAS VIDEO LFQ vertical type Automatic plastic PVC PET BOPP film Paper Roll slitting and rewinding machine with flat knife

FOB Reference Price:Get Latest Price
$6,500.00 - $10,800.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder
Dimension(L*W*H):
2400x1110x1400mm
Weight:
1500KG
Condition:
New
Computerized:
Yes
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
LFQ-1100
Voltage:
220V/380V
Power(W):
5.5kw
Certification:
CE/ISO9001
Cutting width::
1100MM
cutting speed::
160meter/minute
suitable material::
BOPP,PVC,PET
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month according to your request
Packaging & Delivery
Packaging Details
wooden case
Port
Ningbo,China
Lead Time :
Shipped in 15 days after payment
Product Description

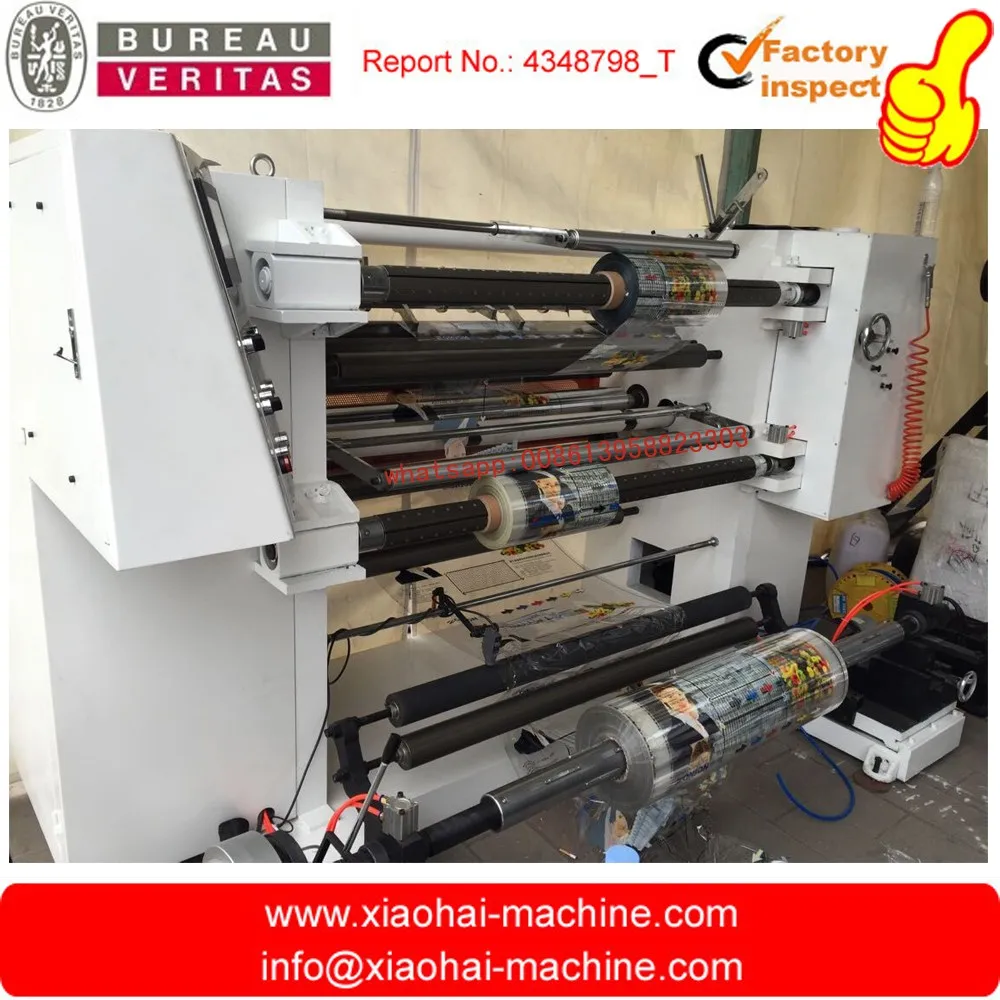

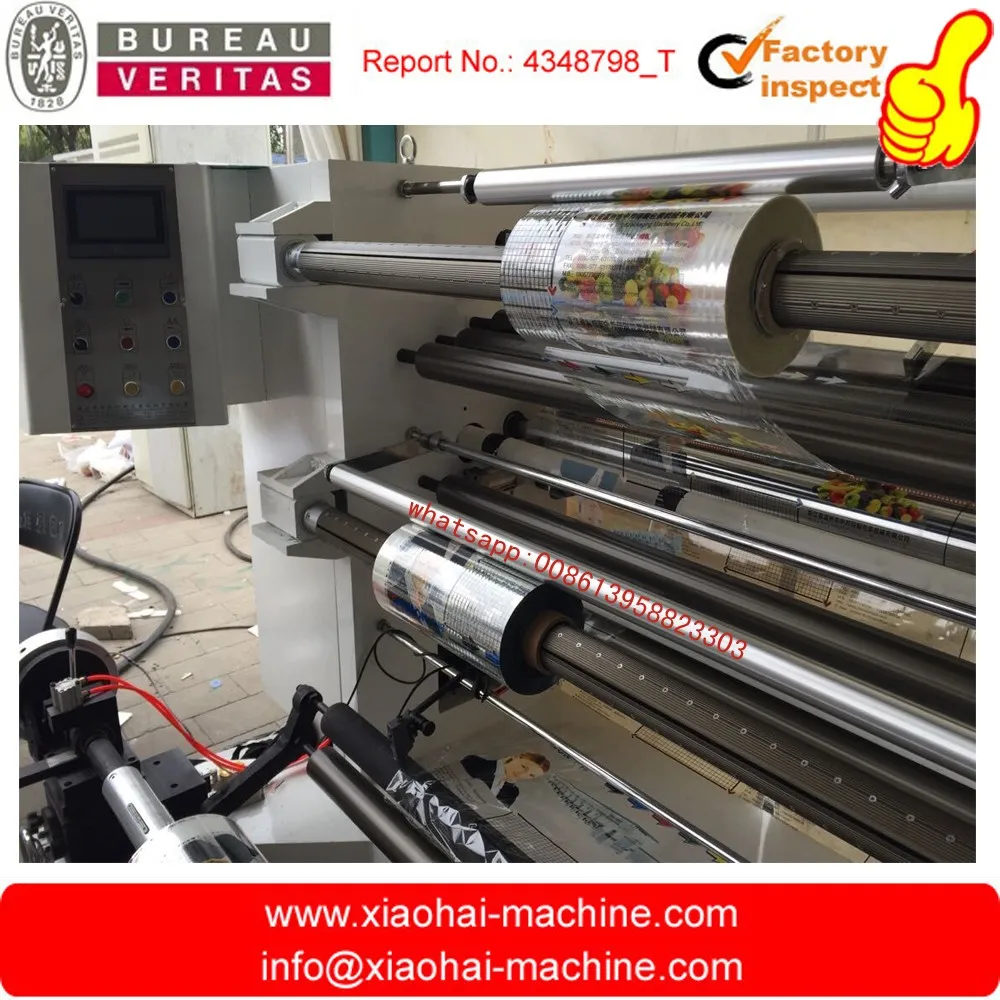

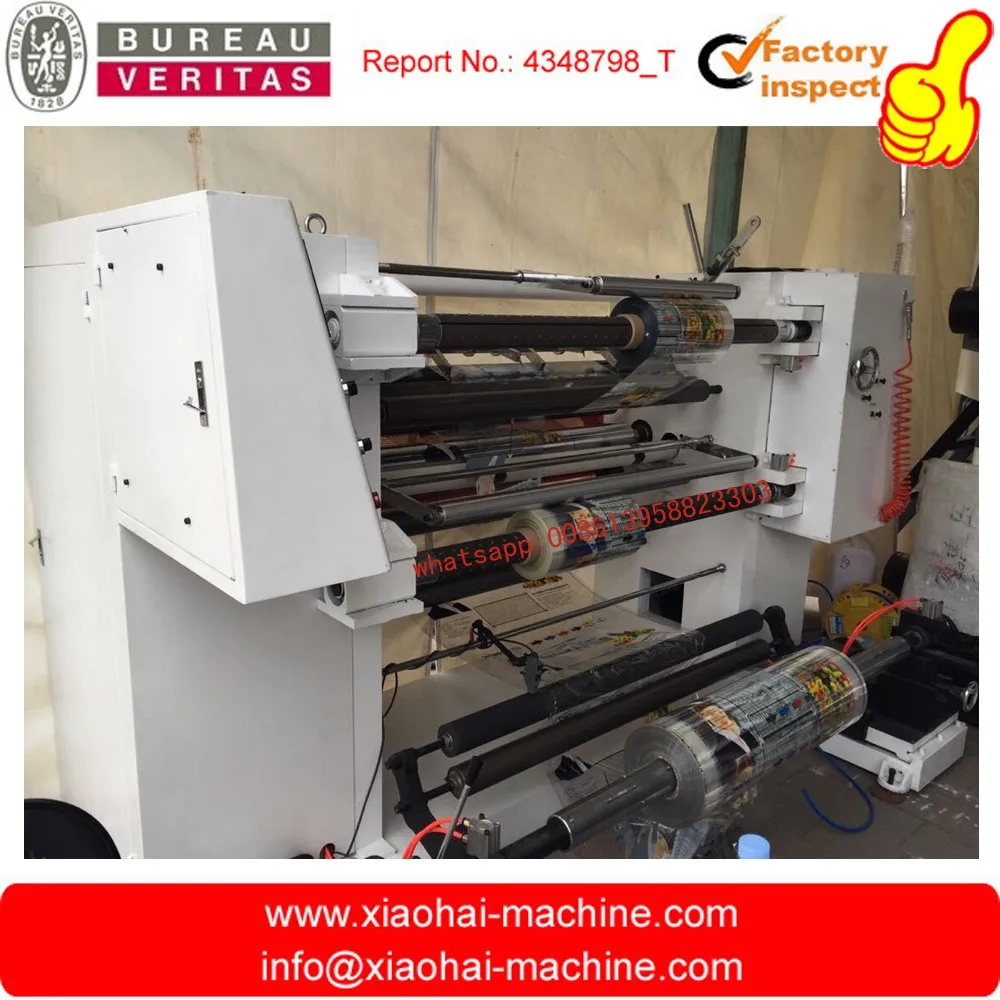

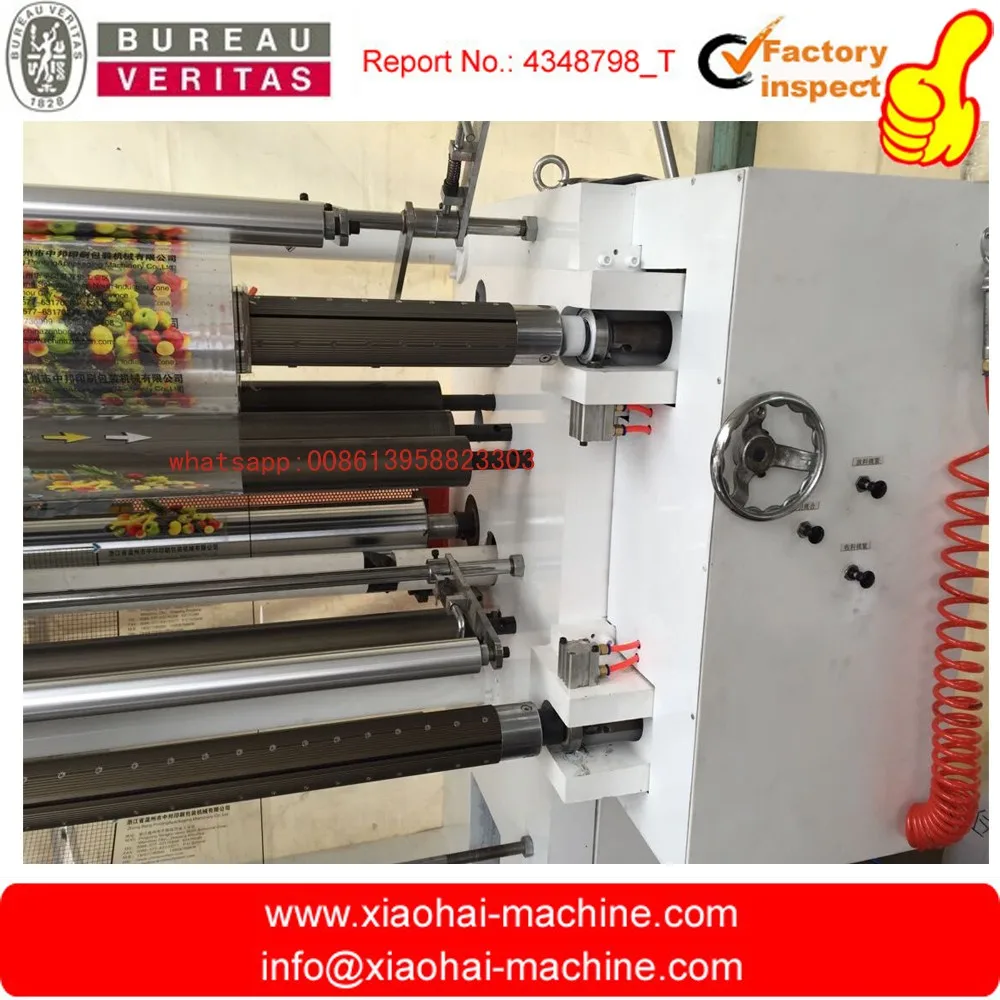

LFQ SERIES VERTICAL TYPE SLITTING AND REWINDING MACHINE



Usage:

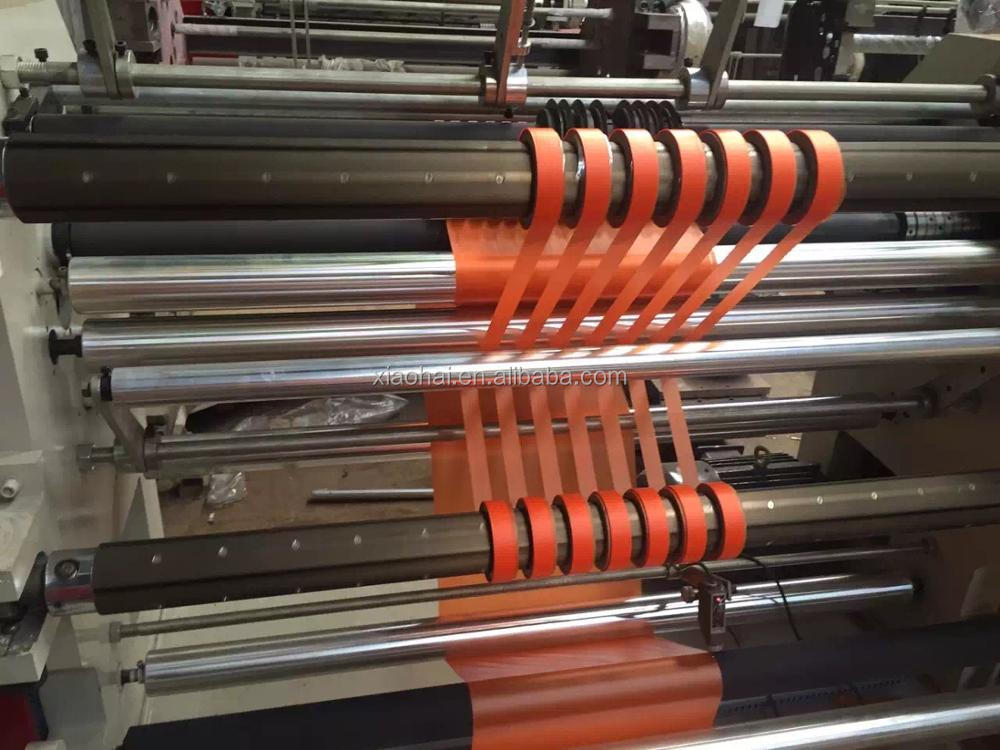

1.The machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc.

2.The machine is with meter counter,EPC,clutch,air shafts,photocell etc.





Specification:



Model No.
LFQ-1100
LFQ-1300
Max.Width of Unwinder material
1100MM
1300mm
Max.diameter of Unwinder Roll
Φ600mm
Φ600mm
Width of Rewinder Roll
30-1100mm
30-1300mm
Speed of Slitting and Rewinding
160m/min
160m/min
Motor Power
3kw
3.5kw
Weight of Machine
1500kg
1800kg
Machine Dimension
2400x1110x1400mm
2600x1110x1400mm





Remark:
We also have wider width machine and more high speed up to 500meter per minute machine,if you want to do wider material,please feel free to let us know,we will provide you details.Thanks.



 the machine can be with PLC,rewinder to be full automatic tension control,disc knife opitional
