HFQ Series High Speed Slitting And Rewinding Machine

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Cartons, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Pouch, Capsule
Packaging Material:
Plastic, Paper
Type:
Packaging Line
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380v
Power:
9KW
Place of Origin:
Zhejiang, China
Brand Name:
XH
Model Number:
HFQ
Dimension(L*W*H):
1800x2800x1600mm
Weight:
2800kg
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
any port
Lead Time :
20days

Specifications

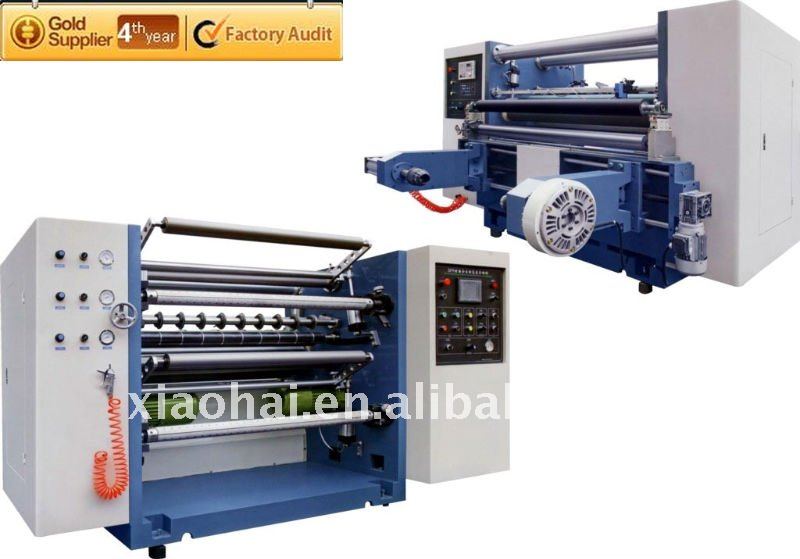

slitting and rewinding machine (horizontal type computer control) for slitting and rewinding such various roll materials as BOPP

MACHINE NAME:HFQ Series High Speed Slitting And Rewinding Machine















Introduction:

1.This machine is mainly used to cut paper,laminated film, aluminum foil, etc. 2. Entire machine is controlled by PLC(two vector motors), man-machine interface,screen touch operation

3.Unwinding part adopts the import magnetic powder brake, realizes by the PLC automatic counting,as well as constant tension control for unwinding

4.transmissiont part uses the vector frequency conversion motor,realize the constant line speed control.

5.Unwinding part is shaftless, adopt air cylinder  equipment, vice- clamps electrically operated by the lead screw to adjust.

 6.Rewinding part uses  the vector

frequency conversion motor,to drive magnetic powder clutch,realized by the PLC automatic diameter counting, auto tensity control.

 7.Auto meter presetting,auto meter counting,auto stoppage,etc.

 8.EPC  error correction  device is positive to assure the accuracy



Main Technical Parameters:

Width of machine

1300mm

Max.diameter of raw material

φ1000mm

Max rewinding diameter

φ600mm

Speed of machine

0-300m/min

Total power

9kw

Overalldimensions(LxWxH)

1800×2800×1600mm

Weight of machine

2800kg

MACHINE LIST

Name

Spec.

  Quantity

Origin

Main Control PLC

Fx2n

1 PC

Hollysys

PLC HMI

Color Screen 5.7”

1 PC

TAIWAN EV

Inverter

5.5/3.7KW Vector Expression

Each 1PC

INOVANCE

Magnetic Powder

100NM

1PC

TAIWAN

Motro

5/4KW

Each 1PC

XinNianHua Motor JiaXing

motor encoder



2 PCS

OMRON

Unwinding Automatic Tension Controller

US-60MTA

1 PC

Shanghai Tension Automatic Equipment Co.,Ltd.

Tension Sensors

TD50-2000N

2  PCs

Shanghai Tension Automatic Equipment Co.,Ltd.

Pneumatic Component



1PC

AIRTAC

Electric





CHINT
