HAS VIDEO new type blown film extrusion machine

FOB Reference Price:Get Latest Price
$5,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
SJ-A
Application:
Film
Plastic Processed:
HDPE, LDPE, Lldpe
Condition:
New
Dimension(L*W*H):
3.8X1.5X3.2M
Certification:
ISO9001
Voltage:
220V/380V
Applicable Industries:
Hotels, Manufacturing Plant, Farms
Key Selling Points:
Easy to Operate
Output (kg/h):
20 - 100
Screw diameter (mm):
50
Film Thickness (mm):
0.08 - 0.1
Number of Layers:
Two-layer
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Power(W):
15KW
Automatic:
Yes
Weight:
3000kg
color:
white
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

HAS VIDEO new type blown film extrusion machine



Product Description

  film blowing machine, film blown machine, film machine,plastic film blowing machine, pe film blowing machine, blow film machine



Machine Name:                    film blowing machine set





Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.

2.The film is widely used for packing bag,such as T-shirt bag, shopping bag, clothing bag, garbage bag and agriculture covering film etc.



SJ-B Series is the machines with double rewinder and rotary head.

SJ-A Series is the machines with single rewinder and without rotary head

also you can indicate the device you want



Specification:





Usage:
1.It is used for blowing the plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE) etc.



2.The film is widely used for packing bag,such as T-shirt bag,shopping bag,clothing bag,garbage bag and agriculture covering film etc







Specification:



Model No.

SJ-A50

SJ-A55

SJ-A60

Screw Diameter

50mm

55mm

60mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

600mm

800mm

1000mm

Single Side Thickness of Film

0.008-0.08mm

0.008-0.08mm

0.008-0.08mm

Power of Main Motor

11KW

15KW

18.5KW

Output

30kg/h

40kg/h

50kg/h

Total Power

18Kw

22Kw

26Kw

Weight of Machine

1500kg

1800kg

2100kg

Dimension(mm)

4800x1800x3600

5000x2000x4000

5200x2200x4400







Model No.

SJ-B50

SJ-B55

SJ-B60

Screw Diameter

50mm

55mm

60mm

Screw Ratio(L/D)

28:1

28:1

28:1

Max.Folding Width of Film

600mm

800mm

1000mm

Single side thickness of Film

0.008-0.08mm

0.008-0.08mm

0.008-0.08mm

Power of Main Motor

11KW

15KW

18.5KW

Output

40kg/h

50kg/h

60kg/h

Total Power

22Kw

26Kw

30Kw

Weight of Machine

2000kg

2300kg

3000kg

Dimension(mm)

5700x1800x3600

6000x2000x4000

6500x2200x4500

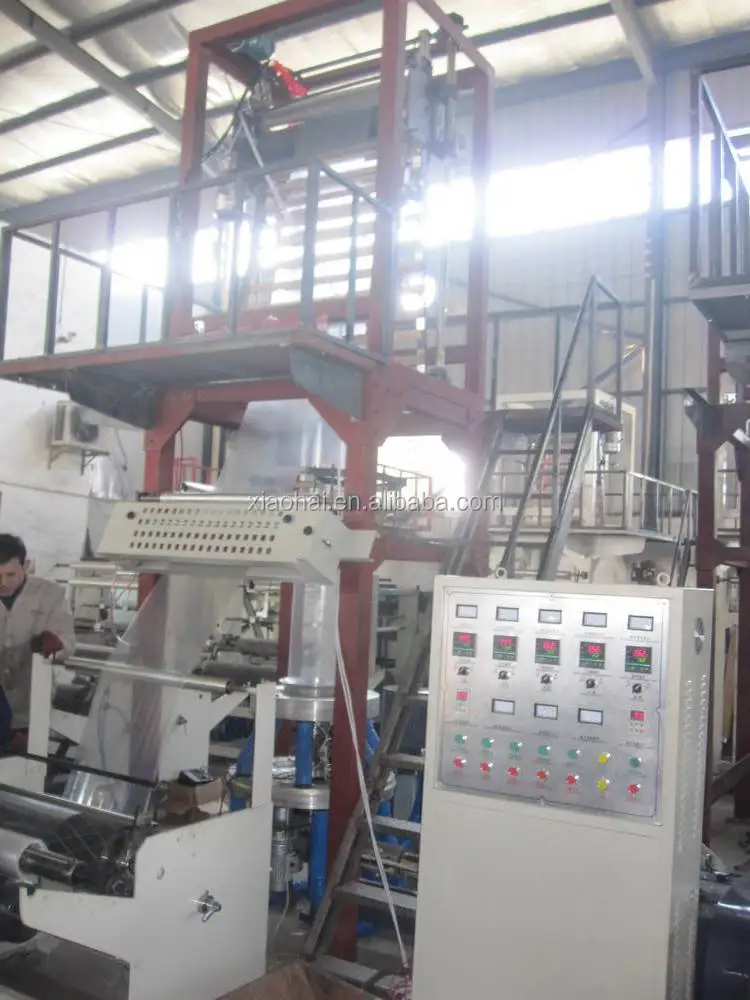

see the process:

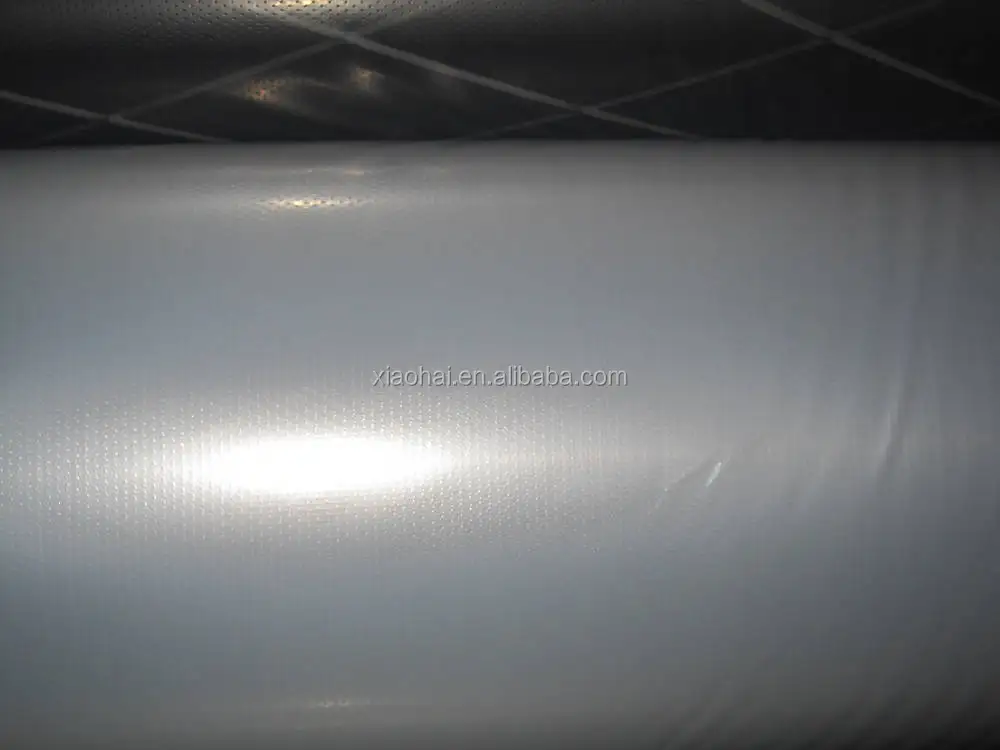

 20080920537.jpgEMBOSSING .jpgEPC.JPGFILM.jpgGusset Station.JPGROTARY.jpgIMG_6650.jpg

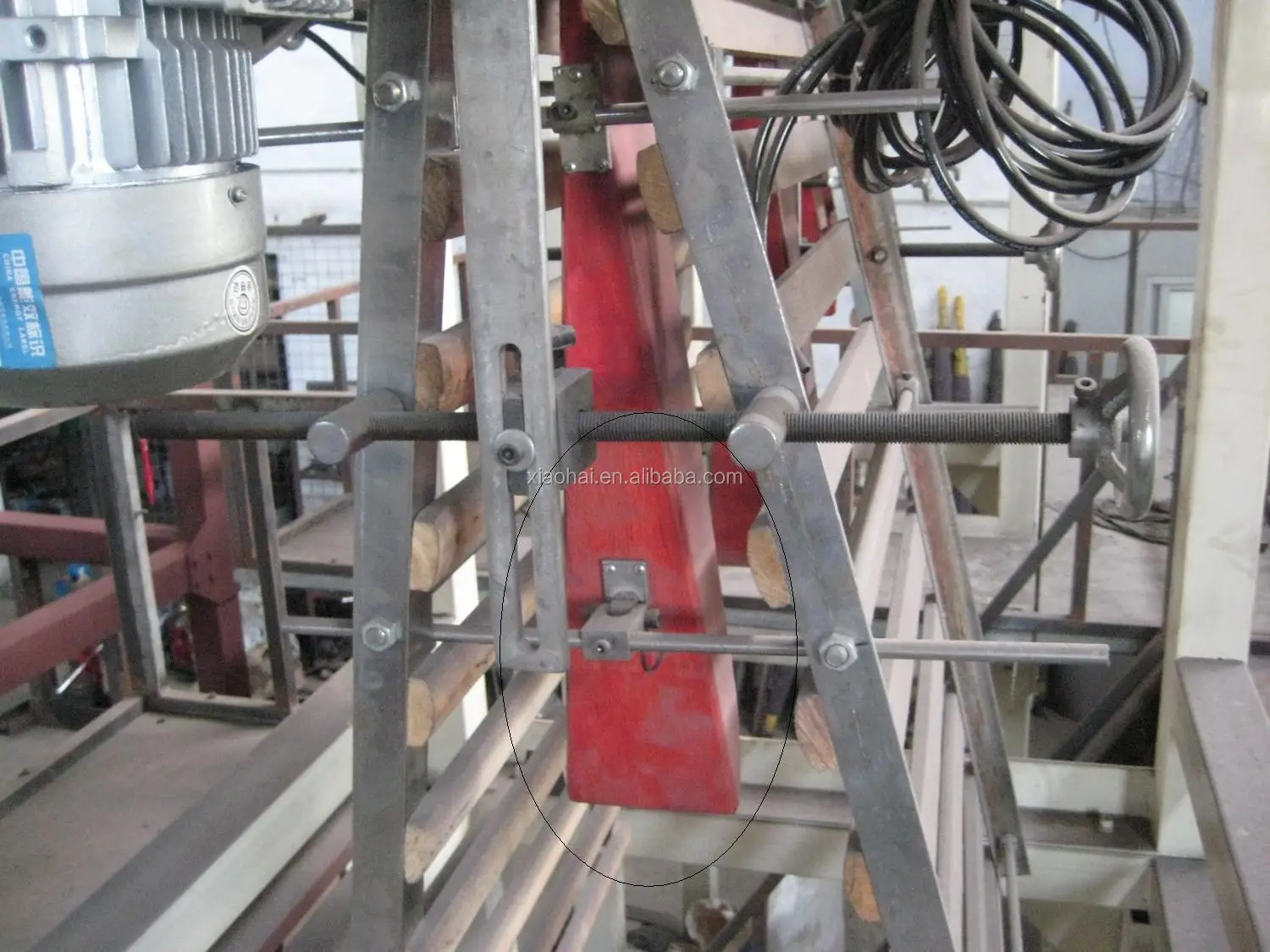

This is the gusset to make the edge fold

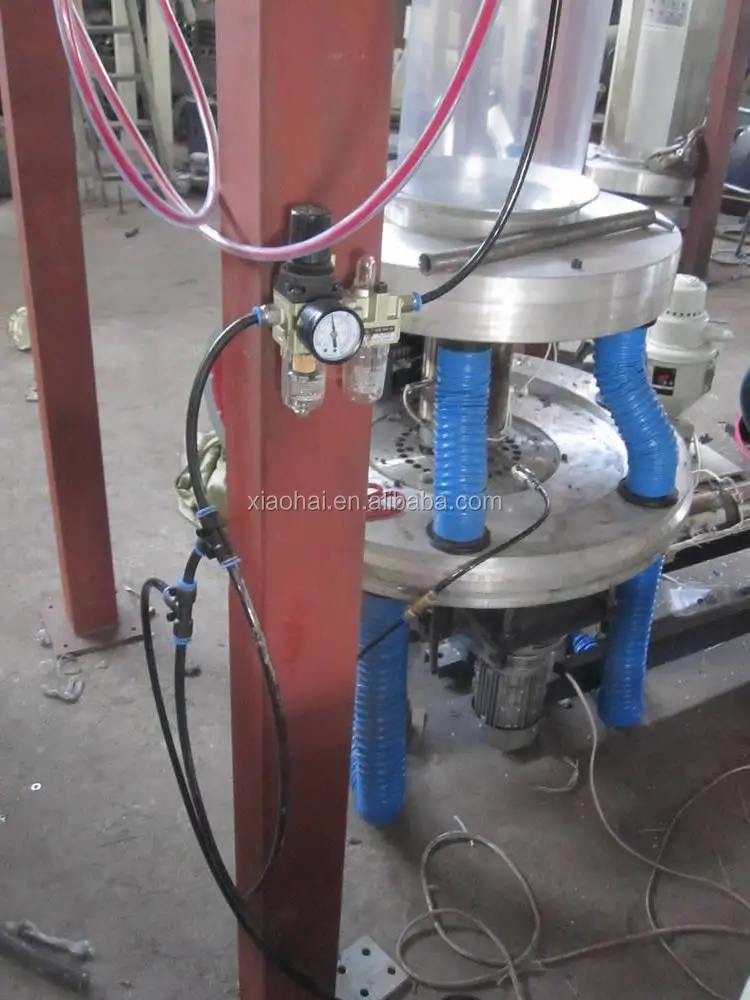

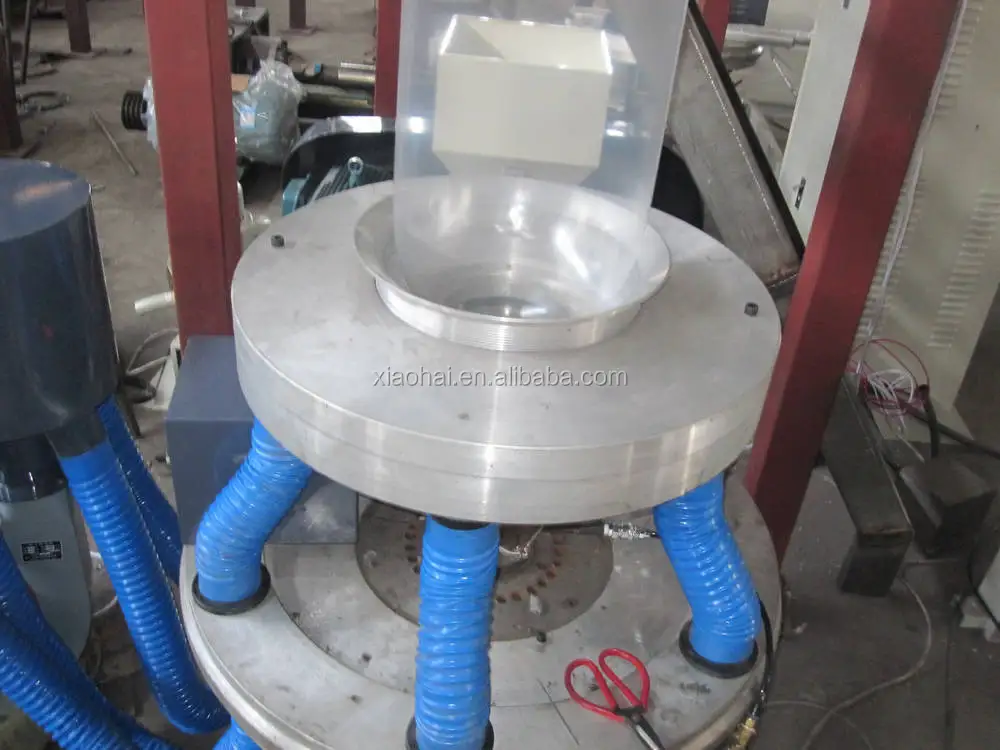

the rotary head:
