HAS VIDEO Full Automatic flat bed platen die cutting machine with punching, hot-stamping ,laminating

FOB Reference Price:Get Latest Price
$1.00 - $20,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Die-cutting Machine
Dimension(L*W*H):
3*2*1.5m
Weight:
800kg
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
MQ420
Voltage:
3.6kw
Certification:
CE/ISO9001
Computerized:
Yes
Power(W):
3kw
function::
for die cutting shape
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Unit/Units per Year
Packaging & Delivery
Packaging Details
wooden box
Port
ningbo
Lead Time :
Shipped in 25 days after payment

HAS VIDEO die cut flat bed machine with punching, hot-stamping ,laminating



Product Description

 .jpg

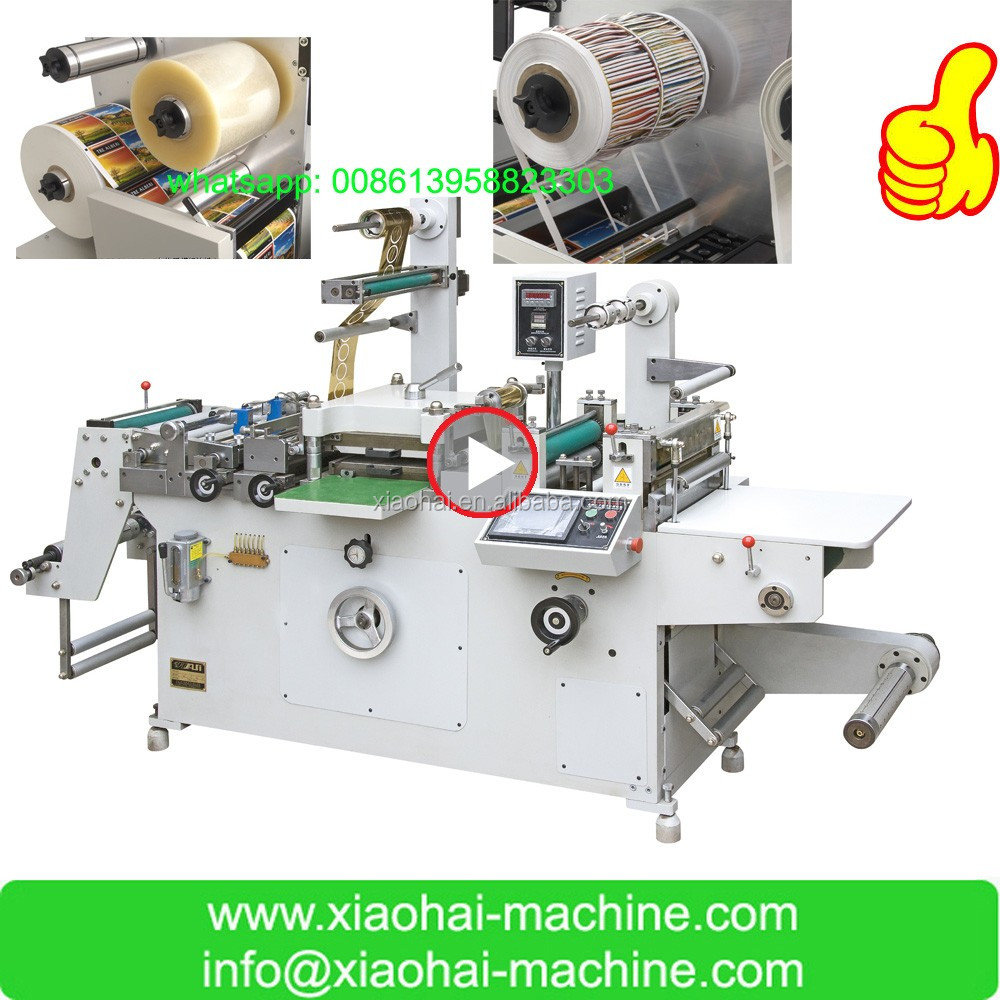

The machine adopts accurate flatten die-cutting system, material towing is controlled by servo motor, three photocells do the web-guiding job. Die-cutting, waste removing and rewinding (or sheeting) can be finished in one process. it's suitable for die-cutting adhesive paper, dacron label and laser hologram mark. This is the ideal association equipment for flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine.



Main specification:

 Model

 MQ-320

 MQ-320G

 MQ-420

Cutting speed

 20-125 t/min

20-170 t/min

 20-170 t/min

 Max unwinding diameter

 450mm

500mm

 500mm

 Max. web width

 320mm

320mm

 420mm

 Max. mould cutting width

 300mm

300mm

 400mm

 Max. mould cutting Length

 290mm

300mm

 400mm

 Orientation accuracy

 ±0.15mm

±0.1mm

 ±0.1mm

 Total power

 3kw

3.5kw

 4.5kw

Power supply:

 220v±10%

220v±10%

 220v±10%

 Machine weight

 1500kg

1700kg

 2300kg

 Overall dimension (L×W×H)

 2600x950x1400mm

2600×950×1400mm

 2700x1050x1500mm



flat  bed die cutting machine.jpg
