2014 new drinking straw making machine

FOB Reference Price:Get Latest Price
$9,000.00 - $11,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XH
Model Number:
XG
Voltage:
380v
Power(W):
11KW
Weight:
900kg
Certification:
CE
Warranty:
One Year drinking straw making machine
After-sales Service Provided:
Engineers available to service machinery overseas
Screw dia.:
55 or 55
Screw L/D:
25:1
Product length:
≥5mm
Product Outer Dia.:
0.8mm-8mm or 0.8mm-13mm
Machine type::
drinking straw making machine
Straw type::
straight straw
straw material::
pp or pe
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case drinking straw making machine
Port
Ningbo
Lead Time :
20 days drinking straw making machine

Specifications

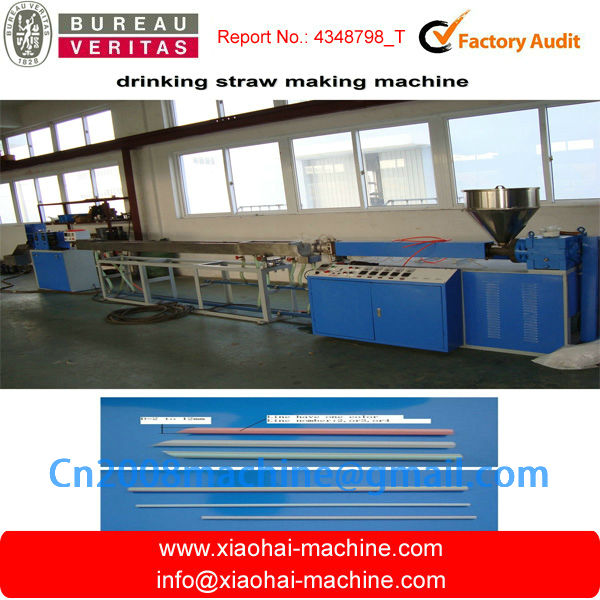

1.drinking straw making machinery
2.producing drink straw,nozzle,cotton,slip,lollipop stick,tooth pick,ball-pen core,watercolo


Product Description

drinking straw making machine can make all kinds of drinking straws,with  single, two colors, straight or spiral strips

1.Material:PP, PE
2.Dia(mm):1-13,Len(mm):5-1,000
3.speed>250m/min capacity:35kg/h
4.Color:1,2,straight

Drinking Straws: 30,000~40,000pcs/h

   Cotton swab sticks: 80,000pcs/h

   Pen Refills: 60,000pcs/h

   Material: PP,PE

   Cutting edge: 90°/90°,90°/45°,90°/60°,45°/45°,60°/60°

   Colour:Single, Two or Three, Sprial Strips,Straight Stripes

   Operator:One operator is sufficent to run the line



 drinking straw making machine















Usage:
1.
The machines are wildly used for producing drink strawnozzlecottonsliplollipop stick
tooth pickball-pen corewatercolor pen oretoy tubedroptube and other small industrial
irregular shape pipes.

2.The machine is with inverter extruding system,mould,vacuum cooling water tank or
cooling water tank,take up and cutting device etc.It make different diameter and
length straight straws.






Specification:



Model No.
XG-1
XG-2
XG-3
XG-4
One color Straw
Double colors straw
Tricolor Straw
Four Colors Straw
Extruder
Screw dia.
50 or 55
50 or 55
50 or 55
50 or 55
Screw L/D ratio
25:1
25:1
25:1
25:1
Motor
11kw or 15kw
11kw or 15kw+
0.7kwx1

11kw or 15kw+
0.7kwx2

11kw or 15kw+
0.7kwx3
Take up and Cutting Device
Inveter
0.75KW×2
0.75KW×2
0.75KW×2
0.75KW×2
Capability
Extruding Output
25-35Kg
25-35Kg
25-35Kg
25-35Kg
Product length
≥5mm
≥5mm
≥5mm
≥5mm
Product Outer Dia.
0.8mm-8mm or 0.8mm-13mm
0.8mm-8mm or 0.8mm-13mm
0.8mm-8mm
or 0.8mm-13mm
0.8mm-8mm or 0.8mm-13mm
Total Weight
900
1000
1200
1300





Remark:

You can choose different screw diameter and motor to make different product outer diameter.We have two types,one is to make max.diameter 8mm,another one is to make max.13mm outer diameter.thanks for your attention.
