HAS VIDEO Adhesive transparent PVC PE BOPP PET IR UV flexo sticker label printing machine ( With die cutting and slitting)

FOB Reference Price:Get Latest Price
$20,000.00 - $50,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
RY320
Gross Power:
15kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Letterpress
Color & Page:
Multicolor
Certification:
CE SGS ISO9001
Usage:
Bill Printer, Label Printer, Paper Printer
Type:
Flexographic Printer
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Voltage:
220V/380V
Weight:
3500kg
Automatic Grade:
Automatic
Dimensions(L*W*H):
3900*2060*2950 Mm
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Ningbo,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

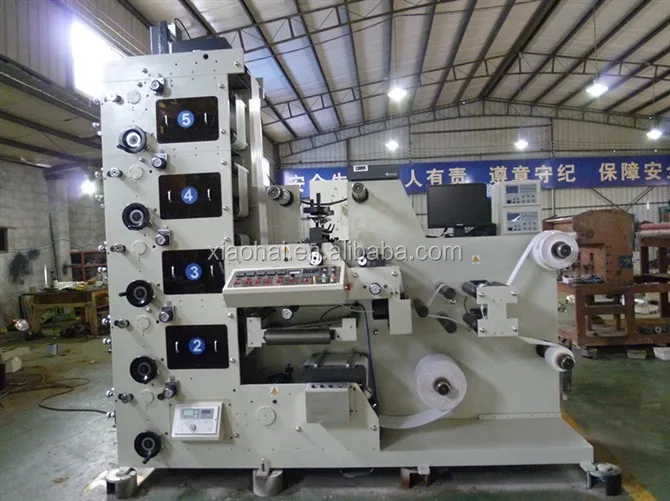

MACHINE NAME:  RY SERIES AUTOMATIC UV  LABEL FLEXO PRINTING MACHINE



NEW TYPE: one machine finish printing,die cutting,sliting in one process




Usage:
1.
It is used for printing various kinds of label with samll or middle or large order quanity printing service.
Also it is an ideal printing machine for the commercial bill,card paper,high grade adhesive tape trademark.

2.Performance and Features:
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch(Japanese Mitsbish auto tension controller).
3. Unwinder system is controlled by auto-rectify sensor.

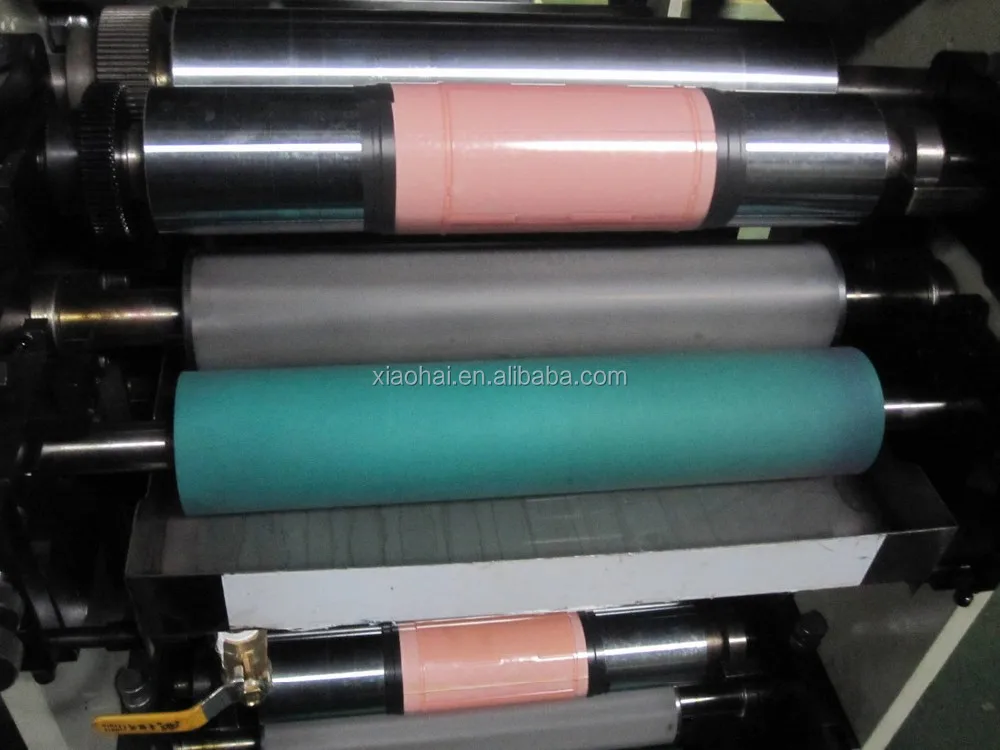

4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.



Specification:



Model No.RY-320RY-450
Colors4-6colors4-6colors
Web maximum width320mm450mm
Max printing width 310mm440mm
Printing length175-320mm175-320mm
Max printing speed10-60m/ min10-60m/ min
Unwinder diameter 600mm600mm
Rewinder diameter

550mm

550mm

Machine weight2000kg2300kg
Machine dimension3000x1500x3000mm3000x1700x3000mm





Remark:The machine also can be equipped with UV,just inform us how many UV you want.Also you can let us your requirement on the machine,we will quote you on your demands.



label printing machinery/label(logo) flexo printing machinery/stack type flexographic printing machinery
