paper cup flexo printing machine

FOB Reference Price:Get Latest Price
$20,000.00 - $33,300.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
RY-850-4
Gross Power:
15 KW
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Flatbed Printer
Color & Page:
Multicolor
Certification:
CE
Usage:
Paper Printer, Label Printer
Type:
Flexographic Printer
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Voltage:
380V
Weight:
3500kg
Automatic Grade:
Automatic
Dimensions(L*W*H):
3200*1600*2900mm
Applicable Industries:
Manufacturing Plant
function:
for printing PE coated paper and other film
Supply Ability
Supply Ability:
10 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden case
Port
ningbo
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

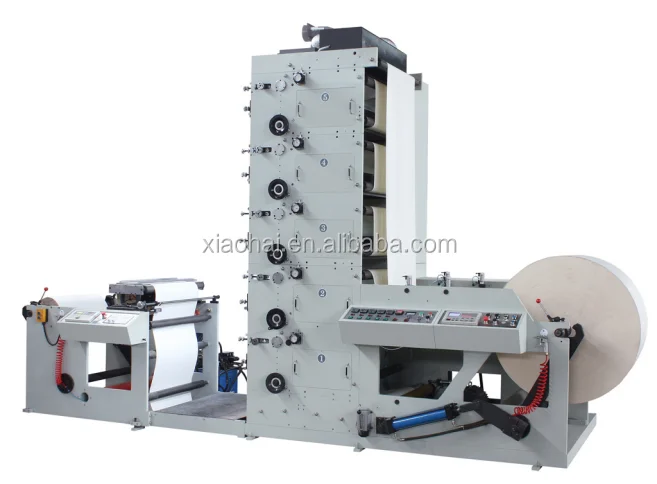

Paper cup flexo printing machine (4 colors)




Characteristics:

1,The main motor adopts imported converter to govern in a steepless way .

2, Feeding and discharging are controlled through magnetic powder brake and clutch (Japanese Mitsubishi aut tension controller) .

3,Adopt ceramic mesh distributor roller, which is characterized by durability , wear resistance, and corrosion resistance, The doctors can be Used, which is more efficient for reducing the times for changing in order to increase the production efficiency.

4,The printing unit can register in 360degrees. Each printing unit can indepen deftly gear and loosen to have the units continue printing.

5,The printing units are all equipped with a group of infrared dryers respectively .

6,The roofing device is adopted with a group of infrared dryers respectively.

7,The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being bry and solid.

8,The roll feeding, printing, auto infrared drying. Laminating and rolling can be processed in one processing. Lt is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high Graded free adhesive trademark.

Main Technical Variables:

Printing speed

60m/min

Printing color

4color

Max web width

860mm

Max printing width

850mm

Max unwind diameter

1400mm

Max rewind diameter

1400mm

Printing girth

250-580mm

Overprint precision

±0.1mm

Power supply

380V/AC Three-phase 50H



Configure:

Simple paste version machine               One, China

Reverse plate shelf                        One, China

Ceramic anilox roller                       4 Items,  (lines from 200-1000 choose by buyer), China

Printing roller (Alu material)                 4 pieces * 2sets =8 pieces, (buyer offers dimension), China

Feeding tension controller                  Ruian, China

Rewinding tension controller:                Ruian, China

Temperature controller                     Zhejiang, China

Main motor                               Wannan , Anhui

Transducer                              Yaskawa , Taiwan

Button                                   Schneider , France

All low-tension electrical                    CHNT, China

Web guiding                              Zhongxing, Ruian, China
