Automatic face mask nose wire forming machine

FOB Reference Price:Get Latest Price
$10,000.00 - $12,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
XH-20
Power(W):
3kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Usage:
Plastic Forming Machine
Dimension(L*W*H):
3*2*1m
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
XIOAHAI
Voltage:
380
Weight:
600kg
Automatic Grade:
Automatic
Certification:
ISO9001
Applicable Industries:
Retail
Key Selling Points:
Easy to Operate
Application:
Medical
Power:
5.5KW
Type:
Packaging Line
Driven Type:
Electric
Packaging Material:
Plastic
Packaging Type:
Barrel
Supply Ability
Supply Ability:
10 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden case
Port
shanghai

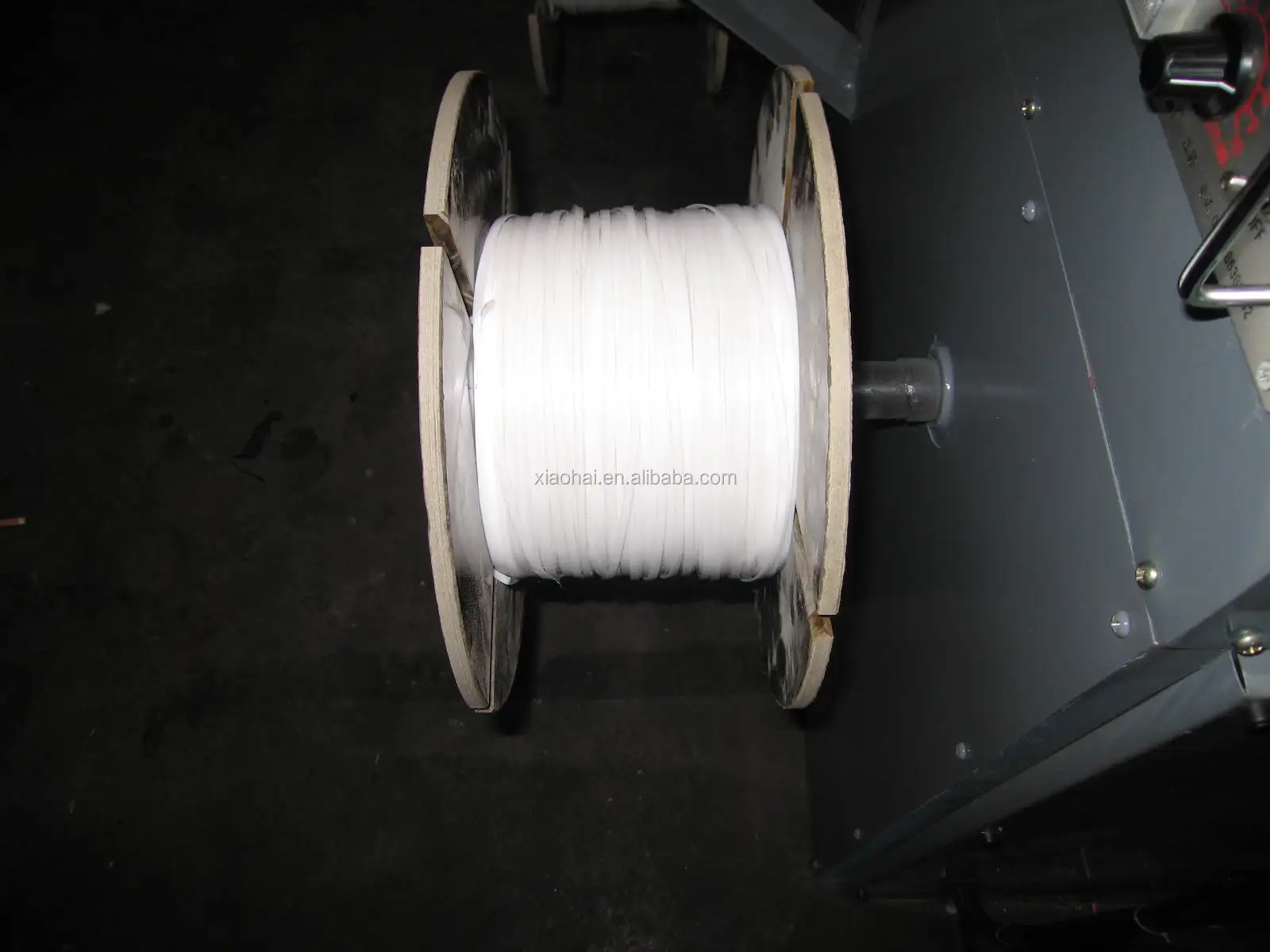

Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

full plastic.jpg



Extruder

Screw diameter

 Φ65mm

Screw length to diameter ratio

25:1

Driving power

7.5kw (frequency control)

Number of heating sections

3 segments

heating method

Cast aluminum heating

heating power

12 KW

Material of screw and barrel

38CrMoALA, nitriding treatment, nitride layer depth 0.5-0.6mm, screw hardness (HV) ≥740, nitride layer depth 0.5-0.7mm, barrel hardness HV≥940

Configure high quality gearbox

1 gears are made of special alloy steel, carburized and quenched, fine grinding teeth processing

2 configuration external circulation strong cooling system

3The whole gearbox is a special speed reducer with high life, low noise and low heat.





Die head

Material of dia head

High quality structural steel quenching and tempering treatment

heating power

1.2KW

Number of heating sections

1 segment





Cooling water tank

Water tank material

High quality stainless steel

Water tank effective size

1300 × 250 × 390mm (length × width × height)

Water tank roller wheel

Three sets, roller chrome treatment (angle adjustable)





Traction and embossing roller set

Motor Power

3kw (frequency control)

Cylindrical gear reducer

12.54:1

Guide wheel

Three sets, adjustable pressure, up and down roller synchronous gear transmission






Shaped water tank and embossing roller set

Water tank material

High quality stainless steel

Water tank size

5430×225×200

Water tank roller wheel

Four sets, chrome treatment

Air cold roller wheel

Five sets, chrome treatment



Rewinding structure

Motor Power

6N·M torque motor

rewinding form

Reciprocating screw sliding

Maximum rewinding diameter

Φ450mm

rewinding method

Torque motor plus friction plate mechanism, constant tension control

Electric control box :Requires stretch ratio adjustable, ranging from 1 to 8 times

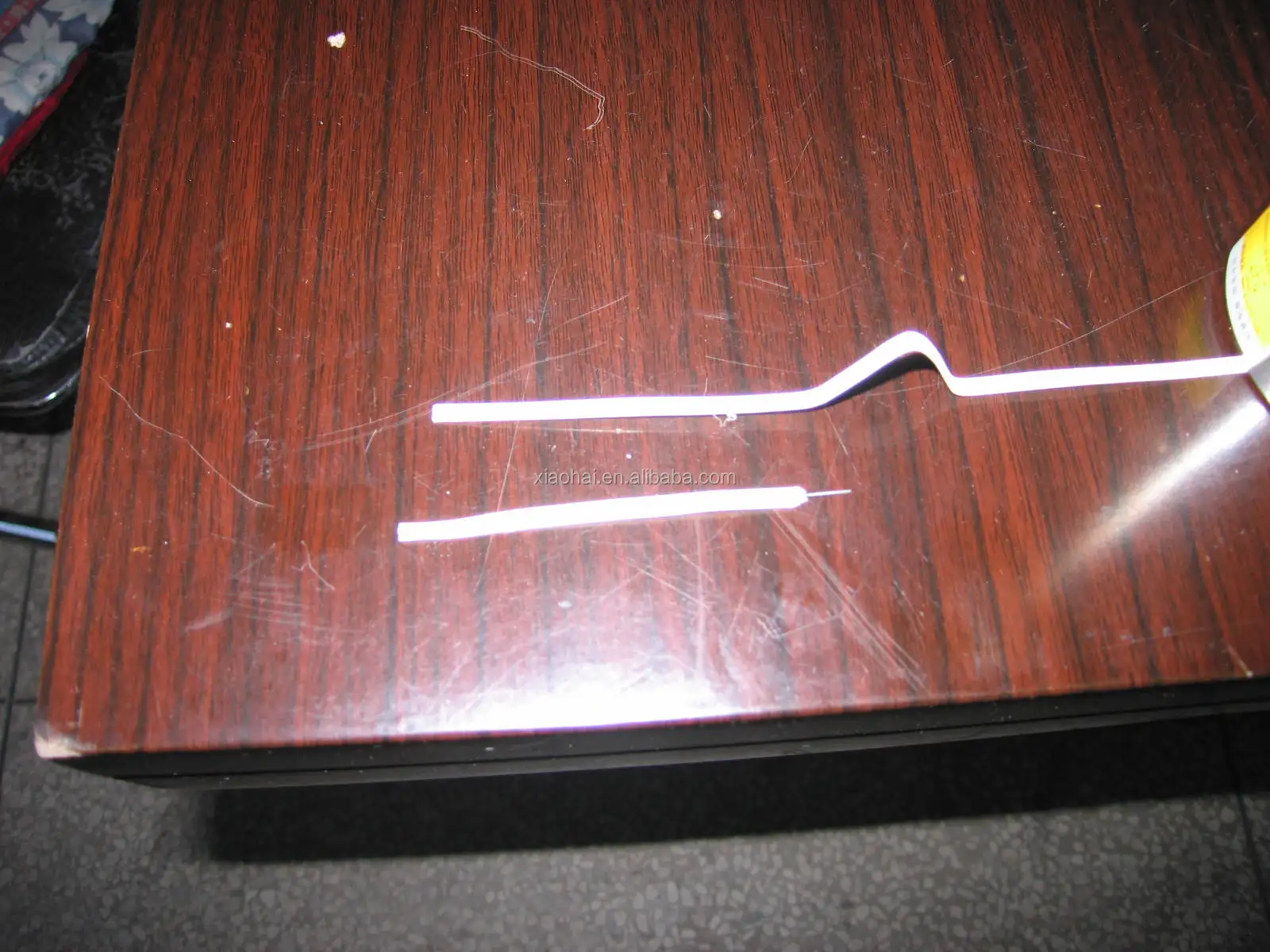

Sample picture:

full plastic 2.jpg
