HAS VIDEO Paper Shopping Bag Machine With Handles Inline And Plastic Shopping Bag Machine

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Bag Forming Machine
Bag Type:
Shopping Bag
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
ZD430B paper shopping bag making machine
Voltage:
380V,3phases,50/60hz
Weight:
20000kg
Certification:
CE
Computerized:
Yes
Material:
Paper
Dimension(L*W*H):
15000*3000*2500mm
Power(W):
33KW
Type:
paper shopping bag making machine
Suitable Glue:
Water Based Glue
Paper Thickness:
70---150gsm
Tube Length:
280-600mm
Bottom width:
80-150mm
Bag width:
240--430mm
Bag width control:
Mould(Plate)
Web Edge Control System:
Automatic
Web Tension Control Syste:
Automatic
HS code:
844120
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exported seaworthy packing
Port
NINGBO/SHANGHAI
Lead Time :
30 days

1.paper shopping bag making machine with flat type handles inline



.jpg

Product Description



1. Features:

This machine won global users’ acceptance for it quality and fine performance.

It can produce variable sizes paper bag. The handle units for making the twisted cord

and paper flat rope from roll into handles, machine could paste paper handle inline for

completely paper bags without any manual process. The machine automatic paper fed from roll,

tube forming , cut-off, bottom forming, bottom glue, bag forming and final bag output.

All steps are completed in line; this machine is an ideal equipment for Twist & Flat handle

square bottom paper bags.



2.Technical Parameters:



Paper Weight70--150gsm
Bag Width240--430mm
Tube Length280--600mm
Bottom width80--150mm
The width of paper roll670--1190mm
Speed90pcs/min
Total Power33kw
Power Voltage380v,50/60hz,3phases
Machine weight20000kg
Machine Dimension15000*3000*2500mm

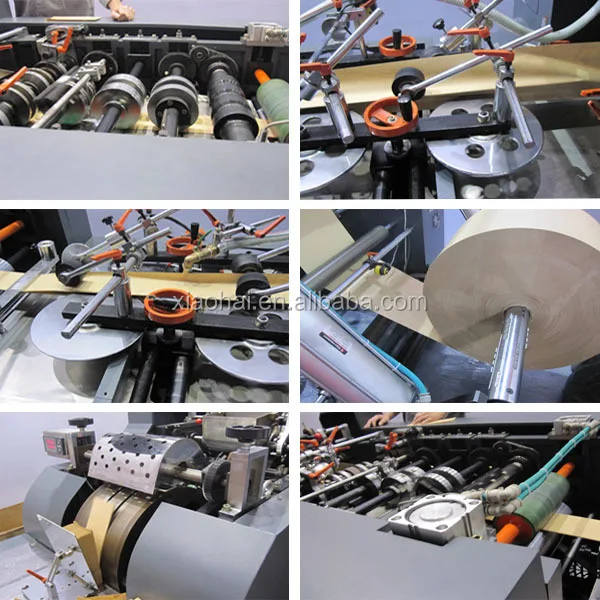

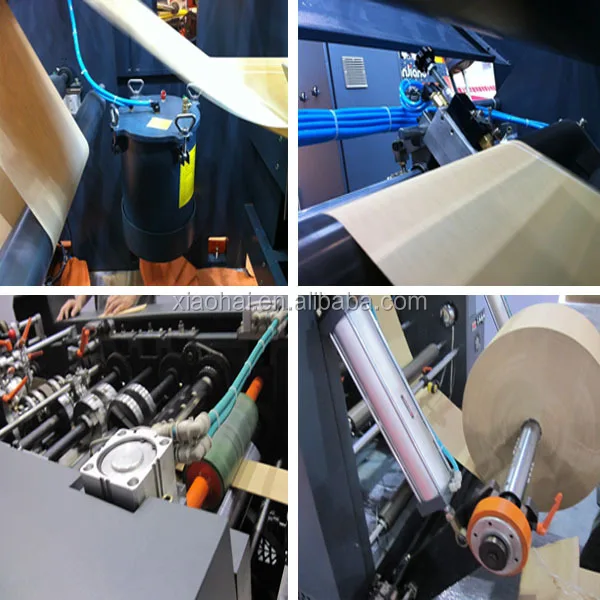

3.Machine Pictures:

machine picture.jpgmachine picture 1.jpg



Pics of samples:



 430B33430B



 2. Plasitc Shopping Bag Making Machine

Product Description

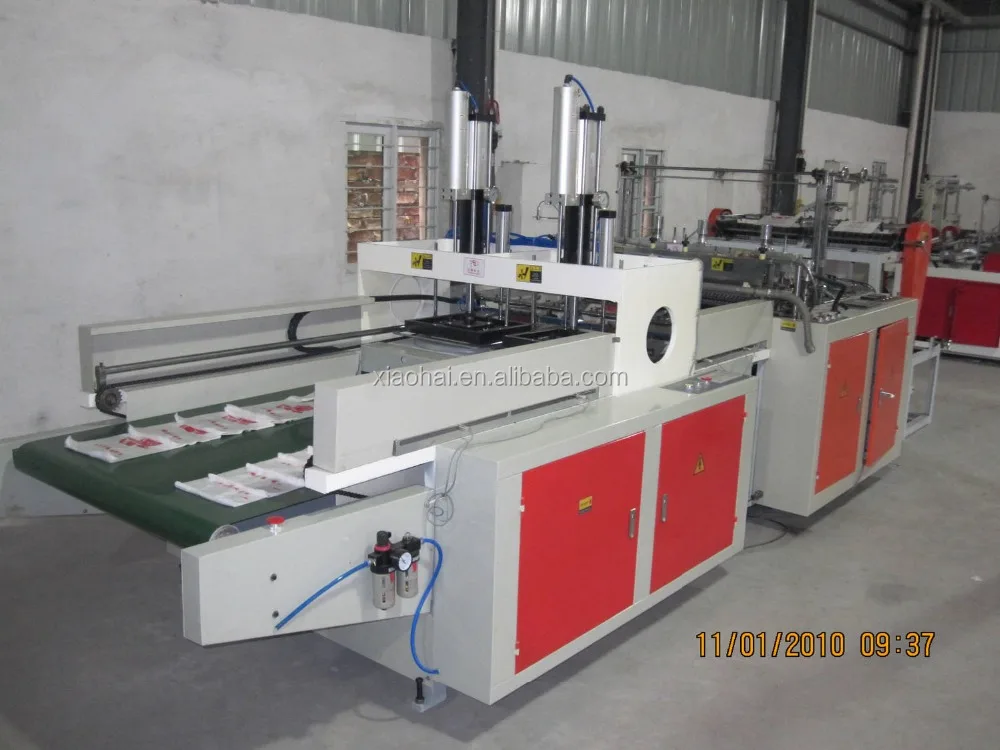

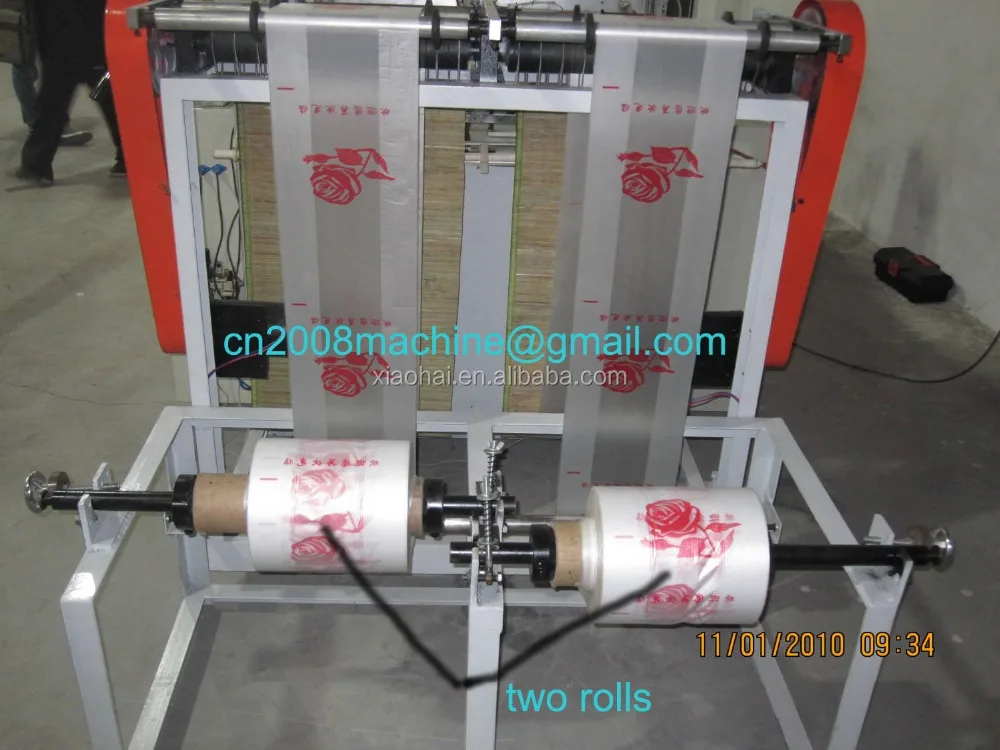

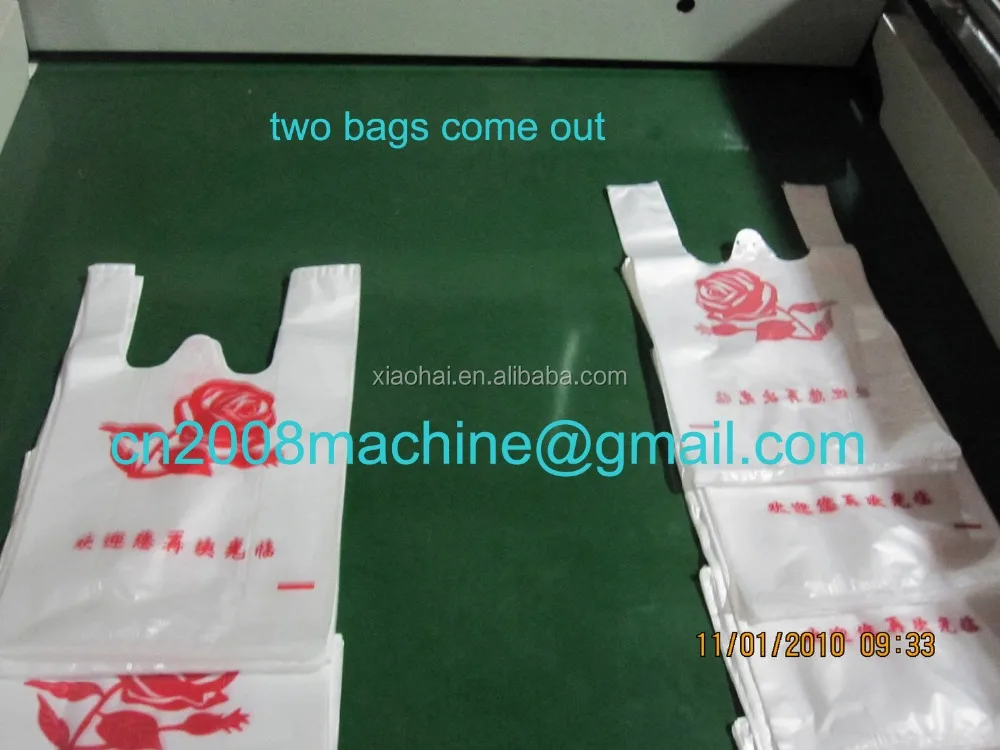

Machine name: Automatic punching t-shirt bag making machine (high speed,double lines)



Usage:

1.This machine is special for making unprinted or printed T-shirt bag.The machine finish the feeding, sealing, cutting, punching and transporting only in one process.

2.This machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,also the machine is with photocell, automatic material feeding device,automatic constant temperature control device, electrostatic removing device,automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag if you want to save labor.

Specification:



Model No.      DZC-300X2      DZC-400X2
Max. Bag-making width        300mmX2      400mmX2
Max.Bag-making length650mm650mm
Bag-making thickness0.015-0.035mm0.015-0.035mm
Bag-making speed140-pcs/minX2140pcs/minX2
Air pressure5kg/cm25kg/cm2
Total Power7kw9kw
Weight of machine1400kg1600kg
Machine Dimensions (L x W x H)6000X1400X1600mm6000X1400X1600mm







Remark:

We also have wider width machine,if you want to make special length and width bag,please feel free to contact us,we will provide you details.thanks

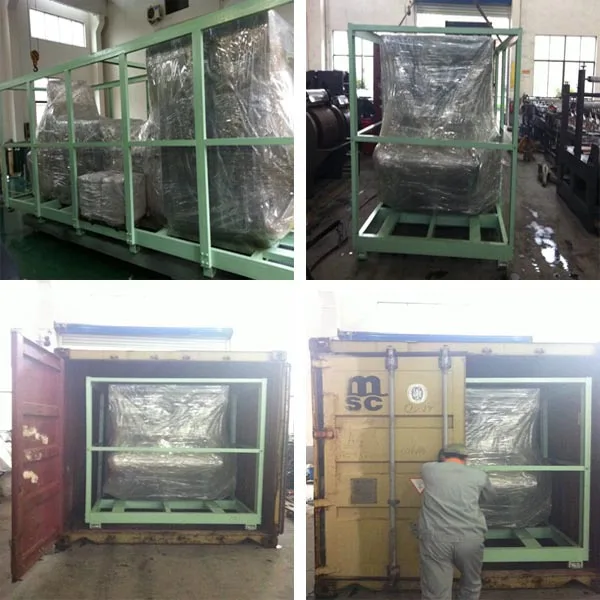

Packaging & Shipping



Our Services

 Our engineer can be available to service machinery overseas.

1)We have several senior engineers service in many countries, all the year round with our after-sales office in multiple countries

2)Machines with good quality in one year, life-long maintenance

3)We have many machines can be monitored via the Internet, solve customer requirements in a timely manner.

4)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.

5)Undertake various non-standard machinery, solve the customers' requirements.


Company Information

 PAPER BAG MAKING MACHINE

We are pecializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc.

We have both paper bag making machine with roll feeder and sheet feeder.

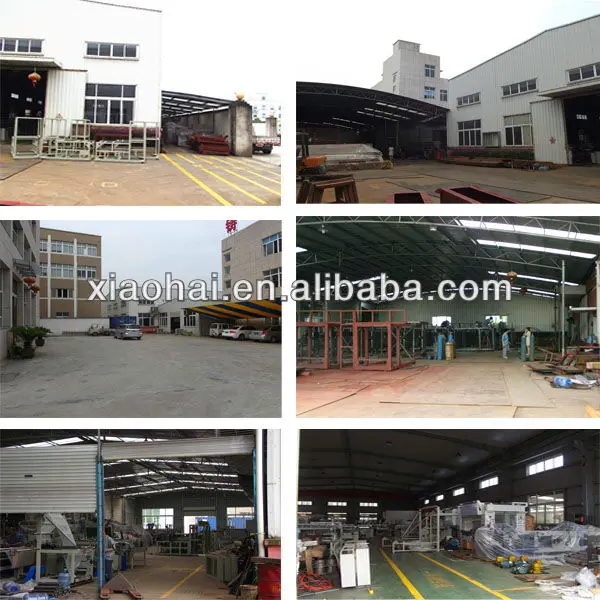

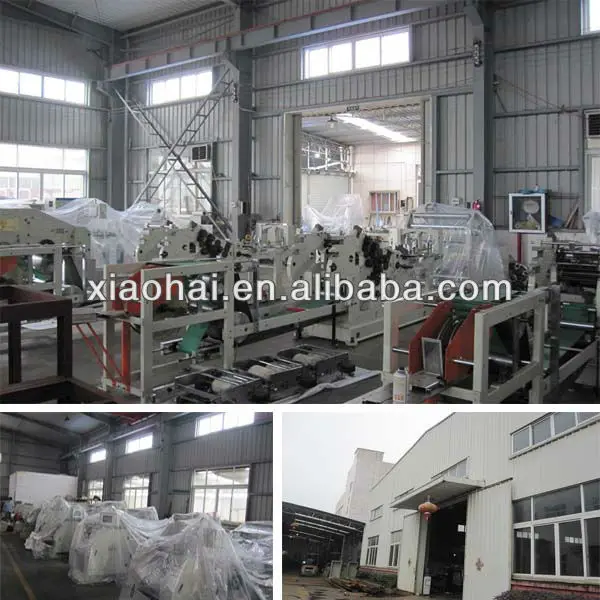

1.Company Show
