Two Colors plastic Film flexo printing machine price

FOB Reference Price:Get Latest Price
$1.00 - $1,111.00 / Set | 1 Set/Sets as you want (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Plate Type:
rubber plate
Color & Page:
Multicolor
Certification:
CE
Gross Power:
15kw
Usage:
plastic and paper
Type:
Flexographic Printer
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai
Model Number:
YT Two Colors plastic Film flexo printing machine price
Voltage:
220v~380v
Weight:
3500kg
Automatic Grade:
Automatic
Dimensions(L*W*H):
4300x1700x2950mm
Printing colors:
1 to 8 colors
Printing width:
600,800,1000,1200,1400mm
Printing material:
PE,OPP,PVC,plastic film and paper
Opitional:
Tension control,Edge position contro
Printing plate:
rubber plate
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month according to your order
Packaging & Delivery
Packaging Details
film packing for Two Colors plastic Film flexo printing machine price
Port
Ningbo,China
Lead Time :
20days for Two Colors plastic Film flexo printing machine price

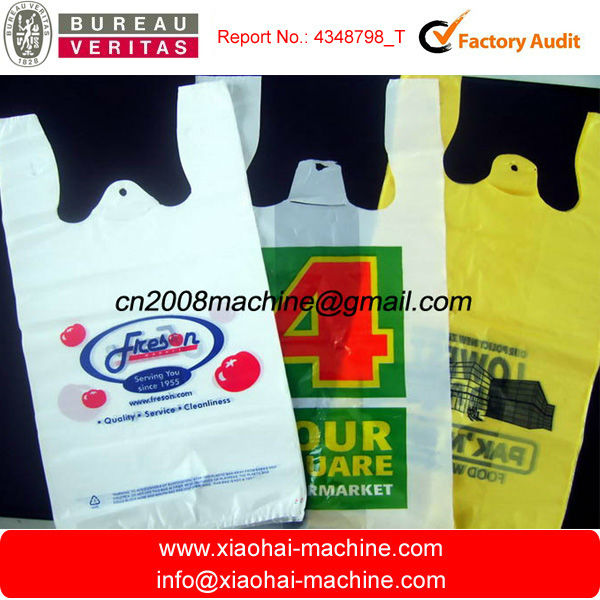

plastic bag production line.jpg



Two Colors plastic Film flexo printing machine price

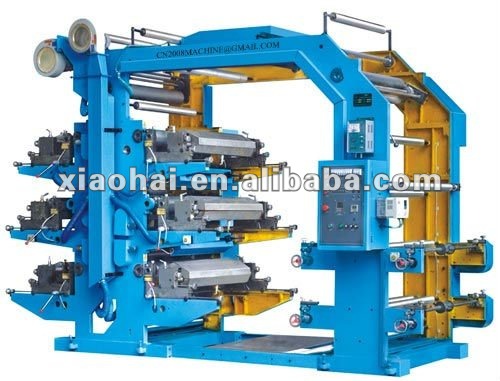

3.YT Series Six Color Flexo Printing Machine.jpg





Usage:
It is suitable for printing such packing materials as polyethylene, polypropylene bag, cellophane and paper in roll, etc. It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
It's quite commonly used for small order quantity printing service.

Performance and Features
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.



Specification:



Model No.

YT-2600

YT-2800

YT-21000

Max.Web Width

600mm

800mm

1000m

Max.Effective Printing Width

560mm

760mm

960mm

Range of Repeat Printing Length

191~914mm

191~914mm

191~914mm

Max.Diameter of Roll Material

450mm

450mm

450mm

Printing Speed

5-50m/min

5-50m/min

5-50m/min

Plate Thickness(Both side adhesive tape included)

2.38mm

2.38mm

2.38mm

Total Power

8kw

10Kw

12Kw

Weight of Machine

1800kg

2000kg

2200kg

Machine Dimension

2300×1700×2500mm

2300×1900×2500mm

2300×2100×2500mm
