cling film machine for food wrap

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $16,000.00
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Number of Layers:
Single-layer
Output (kg/h):
30 - 40
Condition:
New
Application:
Film
Plastic Processed:
LDPE, Lldpe, PE
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai
Film Thickness (mm):
0.01 - 0.1
Film Width (mm):
500 - 2000
Model Number:
SLW cling film machine for food wrap
Year:
2019
Voltage:
380V/ 220V depends
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support, No after-sales service
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Energy & Mining, Hotels, Restaurant, Machinery Repair Shops, Manufacturing Plant, Building Material Shops, Retail, Food & Beverage Factory, Food Shop, Advertising Company, Garment Shops, Food & Beverage Shops, Construction works , Printing Shops
Local Service Location:
None
Showroom Location:
None
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details
seaworthy package for cling film machine for food wrap
Port
NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

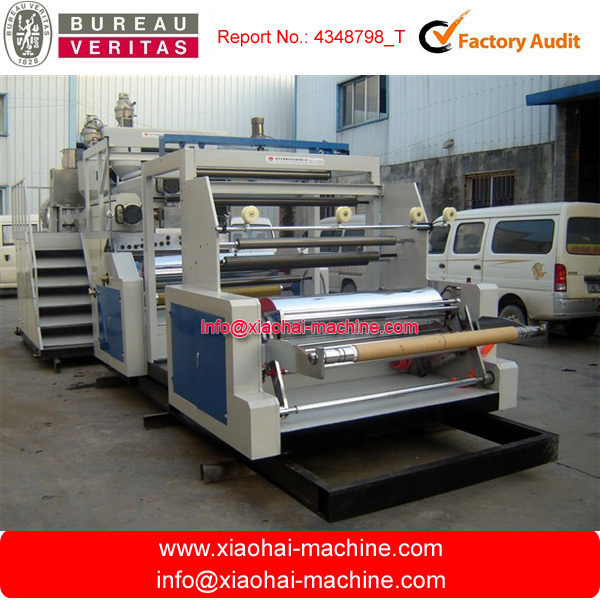

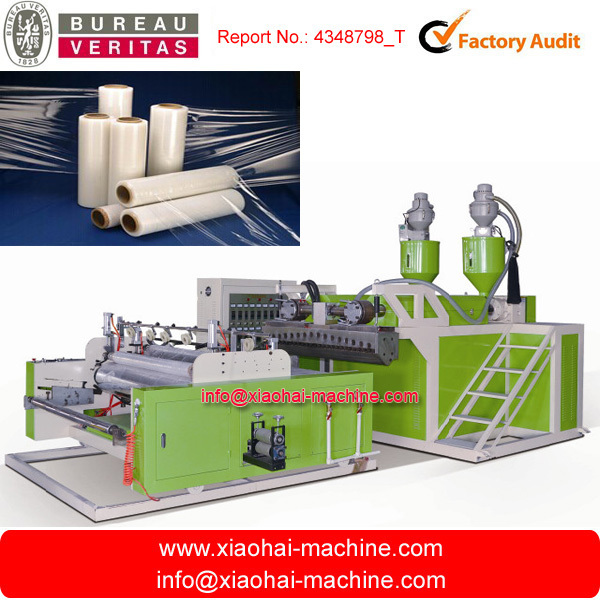

cling film machine for food wrap



1.Feature:

1)It profits advanced technology from aboard and manufacture by absorption, improvement, innovation.

2)It is entire frequency conversion control, movement stable, highly effective and the low energy consumption.

3)The product adopts the craft of one time forming.

4)It can produce two-side sticks for stretching film.



2. Unit introduction

1)This series unit is mainly used in producing the polyethylene plastic film for unidirectional stretch (stretching film, twines membrane) as well as fresh film.

2)Therefore it applies in building material, hardware fitting packing widely. The screw of unit adopts 38CRNOALA alloy steel. It manufactured by nitric and precise processing so that it is highly hardness and durable long time.

3)Temperature controls adopts advanced automatic control system and the T mold adopts the multi- spots adjustment. They could cause the film thickness to be evener.

4)The cooling system adopts the circulating water cool and it cooling effect is good.

5)The rollout installment adopts the friction type of rollout and has the cutting edge installment and side material rollout element by round-trip. This causes the film which rollout to be neater.



3. Main Technical Parameter

Model

SLW-500 single layer

SLW-500 double layer

Screw Diameter

55mm

55mm

L/D ratio

28:1

28:1

Screw Barrel Material

38CRMOLA

38CRMOLA

Die width

650mm

650mm

Film Width

100-500mm

100-500mm

Thickness

0.008-0.05mm

0.008-0.05mm

Rollout Diameter

400mm

400mm

Output

20-40kg/h



Main Motor Power

11kw



Heating Power

15kw

35kw

Overall dimension:

6000×1500×2500mm

6000×2000×2600mm

Total Weight

3000kg

3500kg
