MQ-320 Full-automatic Roll-Roll, Roll to sheet Adhesive Label Die-cutting Machine with Lamination Hot-Stamping and Punching

FOB Reference Price:Get Latest Price
$8,000.00 - $12,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Die-cutting Machine
Dimension(L*W*H):
3100*1250*1500mm
Weight:
1800kg
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XIAO HAI
Model Number:
MQ-320
Voltage:
220v
Certification:
CE
Computerized:
Yes
Power(W):
3.5kw
Cutting speed:
20-180time/min
max unwinding diameter:
450mm
max roll width:
320mm
Die cutting size:
300*290mm
Orientation Precision:
±0.1mm
power voltage:
220V±10%
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year for label die cutting machine
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case packing
Port
ningbo port
Lead Time :
30 days

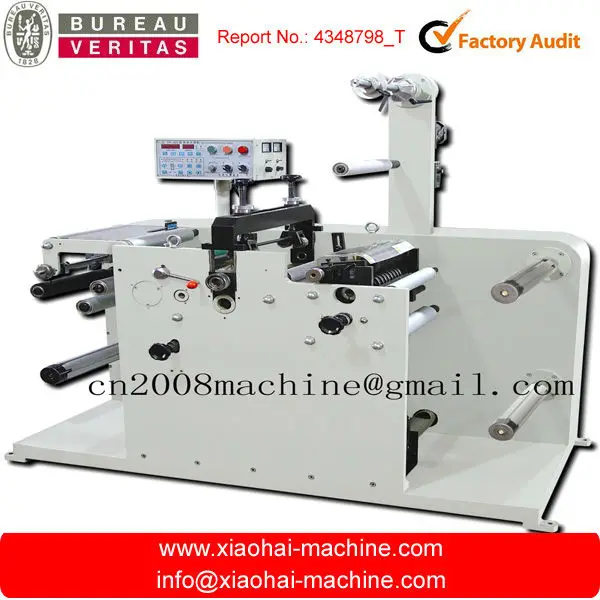

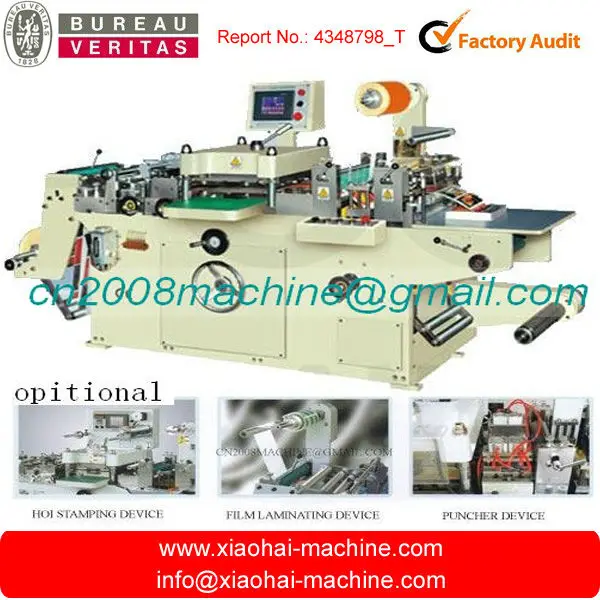

MQ-320 Full-automatic Roll-Roll, Roll to sheet Adhesive Label Die-cutting Machine with Lamination Hot-Stamping and Punching



Full Automatic Label Die Cutting MachineRoll to roll Blank label die cutting and slitting machine









Main Technical Variables :



Cutting speed 20-180time/min
Max.Unwinding 450mm
Max.Roll Width 320mm
Die Cutting Size 300*290mm
Orientation Precision ±0.1mm
Total Power 3KW
Power Voltage 220V±10%
Machine Weight 2000kg
Overall dimensions(L×W×H) 3050×1200×1450mm
