PVC cup form fill and seal machine

FOB Reference Price:Get Latest Price
$888.00 - $888,888.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles, Cans, Capsule
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
380V/220V
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai PVC cup form fill and seal machine
Model Number:
QGF PVC cup form fill and seal machine
Dimension(L*W*H):
4200x880x2200
Weight:
1800
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy package for PVC cup form fill and seal machine
Port
Shanghai / Ningbo Port
Lead Time :
30 days for PVC cup form fill and seal machine

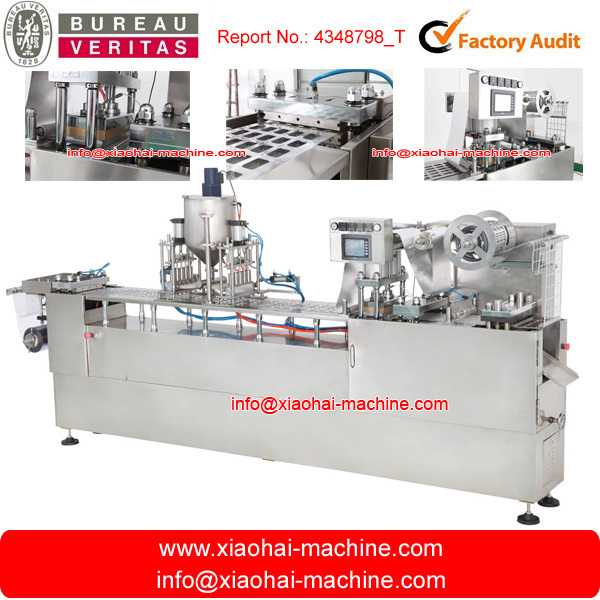

PVC cup form fill and seal machine



Product Description



Description:

This machine is my factory innovation, development and production of packaging machinery, adapted to the various free-flowing liquid filling and sealing, ketchup, jam, chocolate sauce, butter, etc; also suitable for filling cookies, candies, tablets, capsules, etc. Adopt PLC control interface, frequency control, easy to operate.

The machine is equipped with photoelectric eye device to ensure the seal and cut neat and beautiful. Components are made from Germany, France, Japan, Korea and other brand-name products.

Machine fully made of stainless steelSuitable Material sheet: PVC, PS, PET.



Workflow:

Automatic Vacuum Forming → automatic filling → automatic sealing → automatically print the date → Output finished cups automatically.



Specification:

Model

QGF-Z 250

QGF-Z 320

Maximum Forming Area & Depth

160×250×24mm

160×320×24mm

Standard Mould

80×57mm(can be customized)

Speed

15-50 times/minute

Distance Range

40-160mm(can be customized)

Sheet Spec

0.15-0.5×250mm

0.15-0.5×320mm

Power of Main Motor

1.5KW

Voltage

3N-50Hz 380V/220V

Pressure

0.4-0.6MPa

Air Consumption

≥0.3m3/min

Mould Cooling

tap water or recycling water

Dimension(LxWxH)

4000×750×1750mm

4000×780×1750mm

Weight

1600kg

1800kg
