HAS VIDEO Automatic paper roll fed die cutting machine paper cup roll fed die cutting machine

FOB Reference Price:Get Latest Price
$27,000.00 - $32,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Die-cutting Machine
Dimension(L*W*H):
4000*1700*1700mm
Weight:
3000kg
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
XH930
Voltage:
380V,50/60HZ
Certification:
CE
Computerized:
Yes
Power(W):
11kw
Speed:
80--120 stokes/time
Max. Unwinding Diameter:
1200mm
Max. Cutting size:
930*530mm
Min. Cutting size:
490*400mm
Paper Thickness:
100--500gsm
Motor Power:
7.5kw
Gross Weight:
5ton
Warranty:
one year
After-sales Service Provided:
Overseas third-party support available
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN PACKAGE
Port
NINGBO PORT
Lead Time :
Shipped in 30 days after payment



Automatic Flaten Paper Roll Creasing Wooden Die Cutting Machine





Product Description



Automatic Die Cutting Creasing Machine and Embossing Machine adopts micro-computer,

human-computer control interface, servo positioning, alternating current frequency converter, automatic

counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch,

centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations

 of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and

 controls of the machine are imported products and finish machining. Such installation can realize the machine

in steady pressure, precise positioning, smooth moving, safety and reliability during the machine's operation.

 Technical data:

Model NO.:

930 model

Cuttting precision

+-0.10mm

Speed

80-120times/min

Max. Pressure

120tons

Max. Cutting size

930*530mm

Min. Cutting size

490*400mm

Paper material

100-500gsm

Power

11kw

Motor power

7.5kw

G.W

5000kgs

Overall size

4000*1700*1800mm

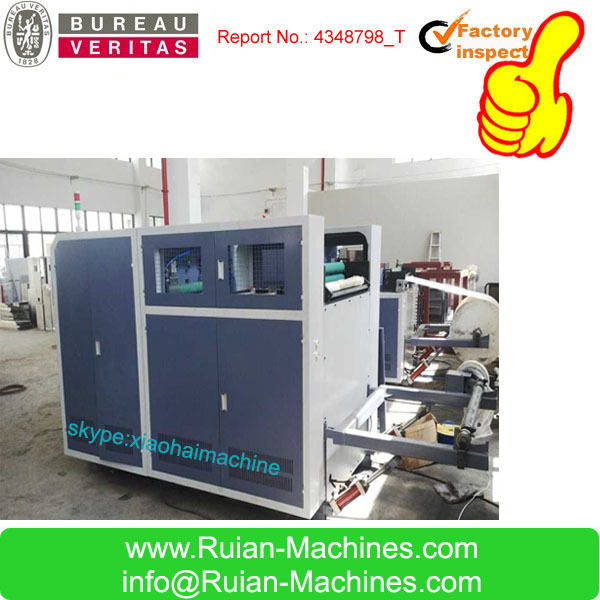

machine pic.jpg

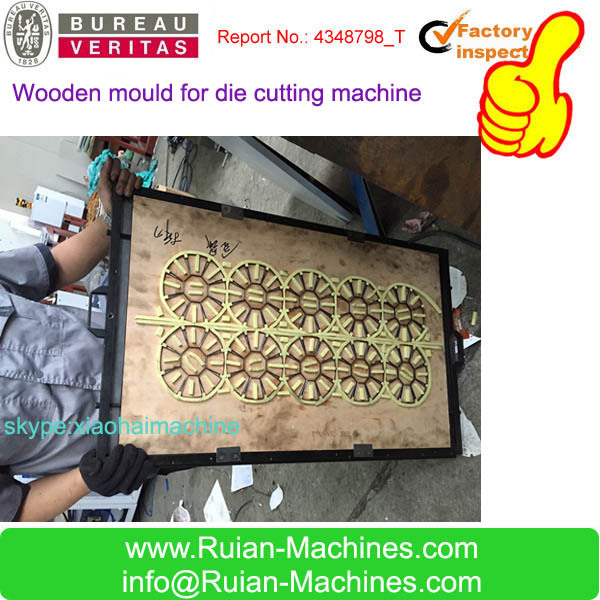

wooden mould.jpgpic 1.jpg
