High Speed Vacuum Forming Machine ( Blister Making Machine )

FOB Reference Price:Get Latest Price
$21,900.00 - $45,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
MX700*1200
Voltage:
380V or 220V
Certification:
CE,ISO9001
Automatic:
Yes
Product Type:
Fast Food Box
Type:
Thermoforming Machine
Plastic Type:
PP
Dimension(L*W*H):
7950x1450x2550mm
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
15kw
Weight:
3500kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box.
Port
NINGBO PORT
Lead Time :
Shipped in 30 days after payment
Product Description

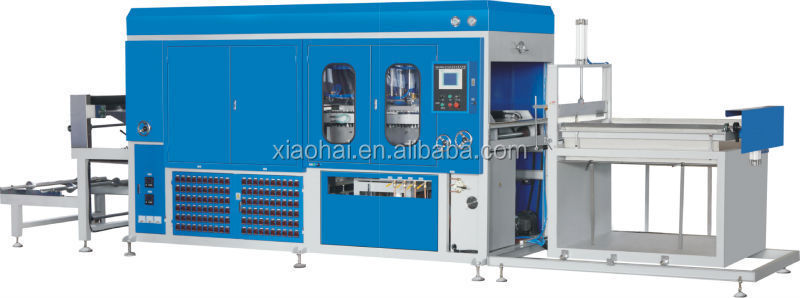

automatic high speed vacuum forming machine for plate,tray,dish,nursery tray and other plastic container




Automatic Computerized Thermoforming machine is designed by the principle of mechanical-electrical-pneumatic integration.

It adopts PLC control system, panel and digital power control.

This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow.



Scope of application :

This machine is mainly applied to plastic sheet material molding.

Such as PS\HIPS\PVC\PET\PP and flocking sheet,etc.which produce all kinds of trays,trays for medicine injection,oral liquid,vegetables ,telephone,cookies,tool,

hardware, electron and disposable tableware etc.



Specification:



Model

MX700*1200

The forming width

500-700mm

The forming length

760-1200mm

Height of forming

less than 130mm

Production speed

60-720 circle/hour

Power of oven

Upon oven 24kw ,down oven18kw

Power of vacuum pump

3kw

Vacuum pump capacity

100m3/h

Air displacement of air compressor

1.5m3/min

Power of air compressor

15kw

voltage

380v 50hz 3phase

Overall size

7950x1450x2550mm

Weight

3500kg

Main electrical equipment



Air-operated

Equipment



Valve

SMC Made in Japan





No  pole cylinder

Sino-foreign joint venture



Vacuum pump100m3/h

made in German



Electrical equipment

Solid state relay and temperature controller

Schneider made in France



Timer Counting and relay Meter

Snyder made in France



Transducer/inverter

Snyder made in France



Another electrical part

Snyder made in France



PLC and touch screen

Siemens



Water spray pulverization system

Made in taiwan



Oil and water separator

SMC made in Japan

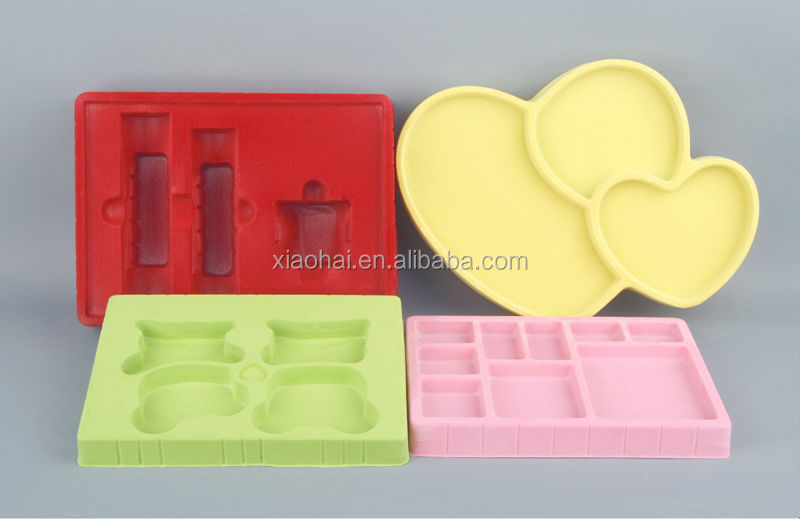

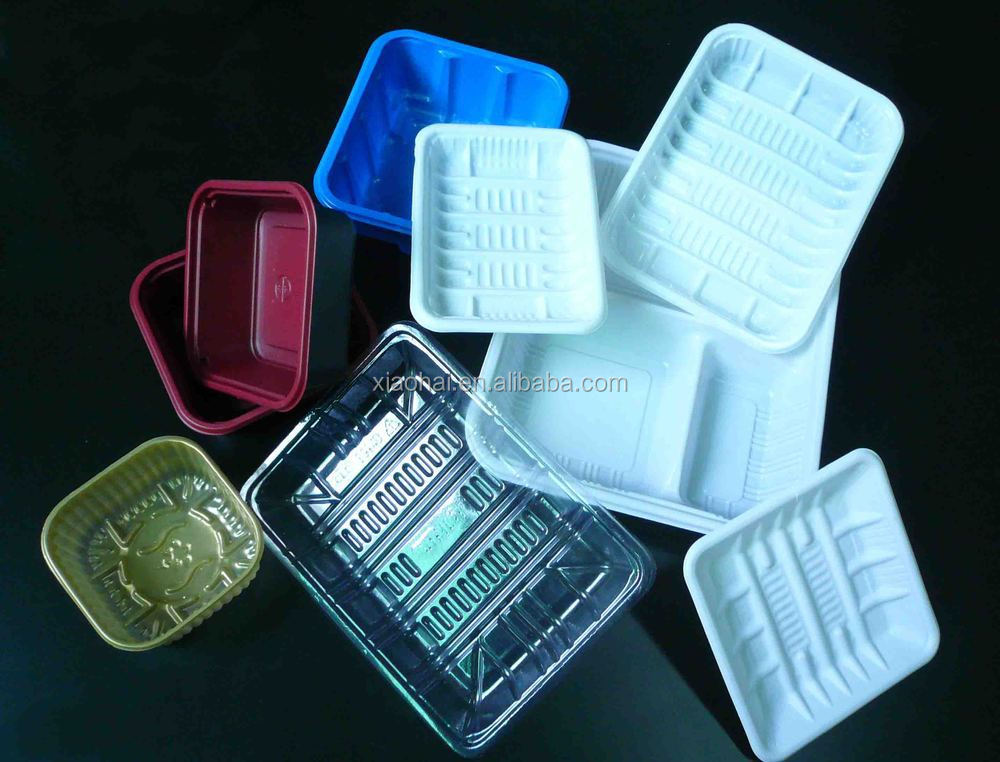

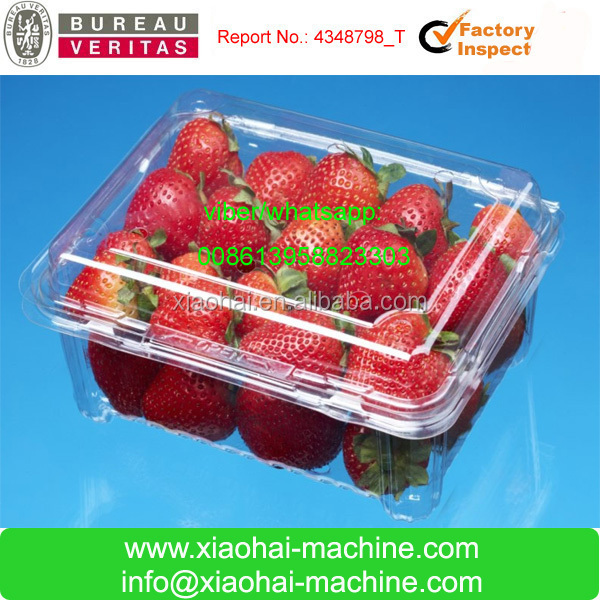

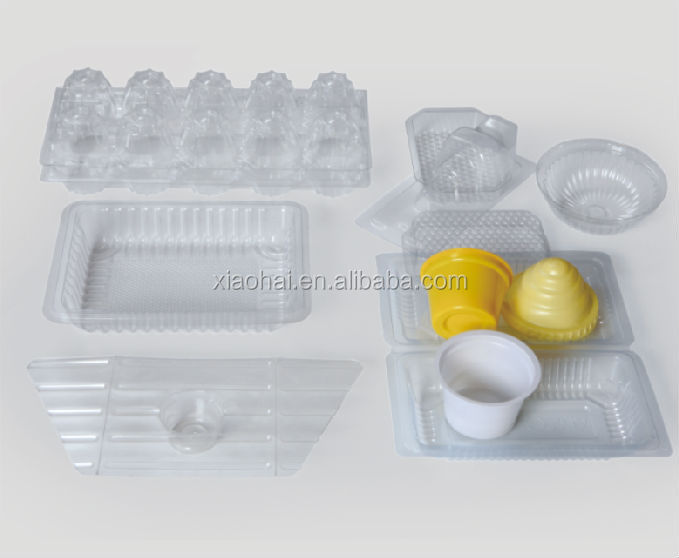

Sample:

fruit tray making making machine.jpgHTB1OPUxIpXXXXaTXFXXq6xXFXXXA.jpgHTB10M7yIpXXXXcKXXXXq6xXFXXXC.jpgHTB1Md7pIpXXXXaGXVXXq6xXFXXXk.jpg
