Super high speed 6mm 8mm 10mm flexible drinking straw bending machine with 600pcs-900pcs per minute

FOB Reference Price:Get Latest Price
$23,000.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Model Number:
WG-4
Voltage:
220-450V
Power(W):
3KW
Dimension(L*W*H):
2.2*1.5*1.7m
Weight:
1200kg
Certification:
CE SGS
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
ningbo
Lead Time :
30 days
Product Description

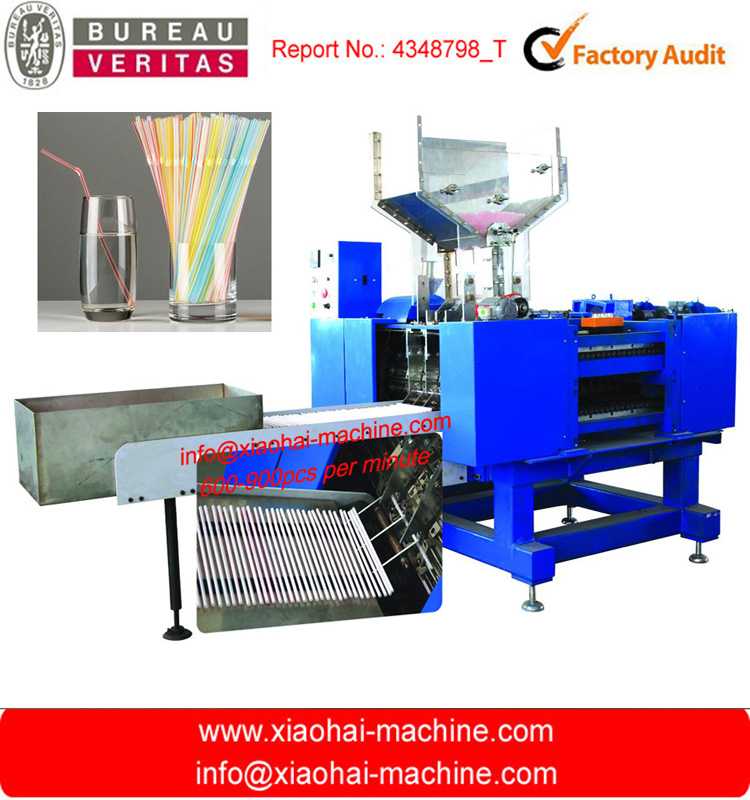

  Super high speed 6mm 8mm 10mm flexible drinking straw bending machine with 600pcs-900pcs per minute

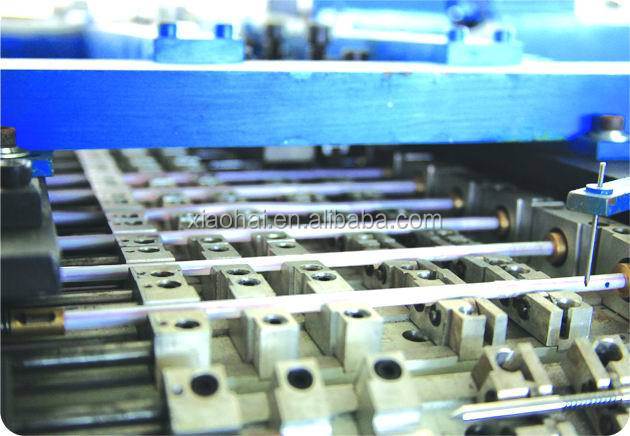

This machine is a forming machine which is used to corrugate straight PP PE pipe, drinking straws into flexible straws. The only thing a staff need to do is to add straws into the hopper, then the straws goes one by one into the main drum and be clamped by two mechanical hand .As the main drum rotates ,the straw goes through two rotary mould to be pressed ,then compressed by two mechanical hand to gain the character of flexibility, then be finished, sent out. As the main drum has 12 or 18 mechanical hands and they work in continuous loop, thus high production can be achieved.



CHARACTERISTICS

1. can be customized for different pipe diameters.

2. With automatic counting function. Once the pre-set number is reached, the machine will alarm you, it is convenient for staff to calculate numbers.

3. Automatic stops when trouble occurs.





Model

JH02-H4

JH02-H5/6

Working speed(pcs/min)

600-900

Straw inner diameter(mm)

φ3.8

φ4.3-8.0



One machine only can do one diameter

Straw length(mm)

fixed

Straw thickness(mm)

0.15-0.20

0.10-0.18

Top section length(mm)

fixed

No. Of flexile rings

10

11 (10-15)

Machine size(mm)

2200×1500×1700 (L×W×H)

Weight (Kg)

1400

Total power (Kw)

1.5 (380V)
