MANUAL Long Whorl Flexible Straw ( Artistic Pipe ) Making Machine

FOB Reference Price:Get Latest Price
US $0-1,111 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai
Model Number:
WG-2
Voltage:
380V/220V
Weight:
40KG
Certification:
CE
Dimension(L*W*H):
main machine: 2.10*1.30*1.5m 1200kg cool unit set: 3.6*0.7*1.2m 100k
Power(W):
90w
Straw colors::
one color, two colors,three colors and more
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden cases.
Port
Ningbo
Lead Time :
5 days
Product Description

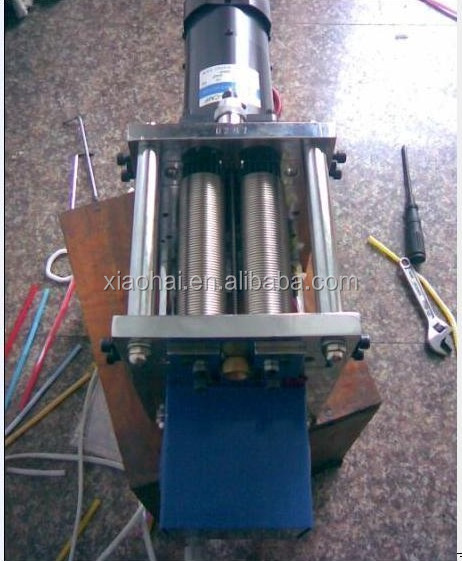

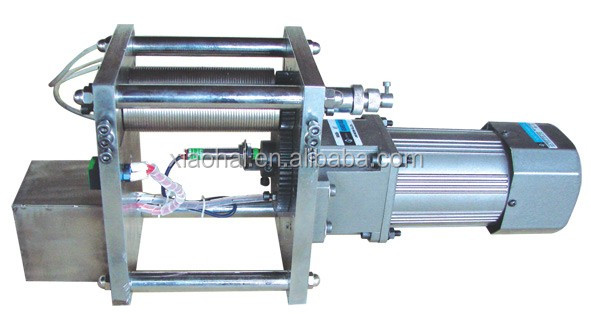

This semi automatic artistic drinking straw making machine is used to produce flexible multi-teeth straw. The teeth can reach up to 60pacs. First, the straight straw material of polypropylene is feeded by hand. Then, two groups of forming wheel are controlled by foot switch tp rotate. After that, the straw is automatically shaped into flexible straw with 60 teeth. Finally, the operater pull out the drinking straw by hand.



Features:

1. Produce flexible artistic straw with 60 teeth.

2. The operation is convenient. Foot switch is applied and the operation can be performed with both hands.



Driving motor             90w
Productivity20pcs/min
Straws specificationsInside diameterΦ5.8mm
Thickness of straw0.15-0.19mm
Length of straw270-400mm
Tooth40-60 teeth
Other specifications are customizable
Machine size20*90*160mm
Machine weight40kg
