automatic flexible straw forming machine

FOB Reference Price:Get Latest Price
$10,000.00 - $14,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
BF14
Condition:
New
Application:
straw
Plastic Processed:
PE
Screw Design:
Double-screw
Automatic Grade:
High
Place of Origin:
Zhejiang, China
Brand Name:
XH
Voltage:
380V
Dimension(L*W*H):
1500*1800*1600mm
Weight:
1000kg
Certification:
CE
Product Type:
Plastic Pipe
Processing Type:
Extruding Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
1.5KW
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
ningbo
Lead Time :
Shipped in 30 days after payment

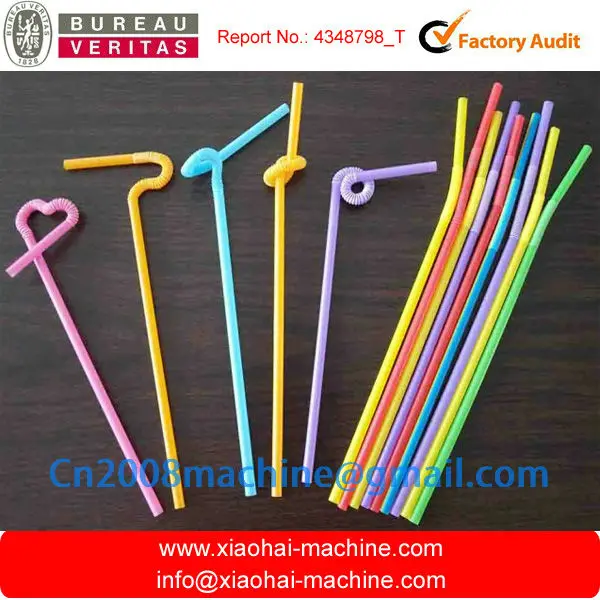

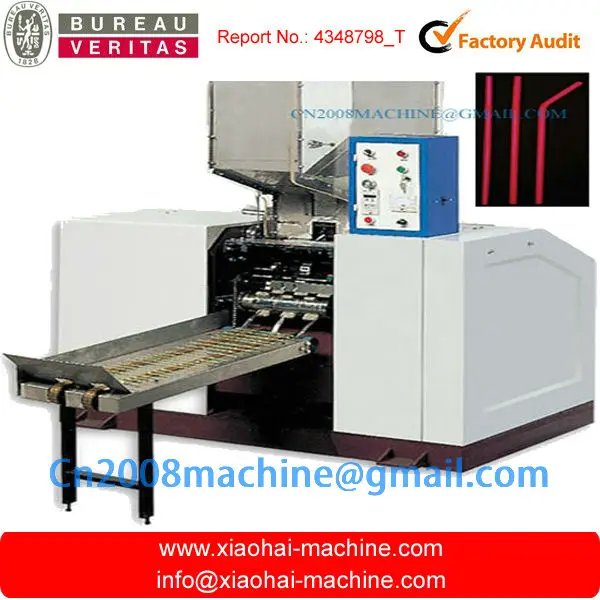

Automatic flexible straw making machine provides new levels of performance for the production of flexible straw. Its a high efficiency machine of making flexible corrugated straw from straight one.

The entire operation, from product in-feed and forming to finished product out-feed, is automatically requiring the operator to add the material only.

The straight straw suppiled in the hopper at the top of machine, are fed one by one into the main drum of the machine, and clamped by two mechanical catches. As the main drum rotates, the straw passes through two rotary dies to receive die-pressed dffect, is then compressed with two catches to form flexible. And delivered to the output conveyor automatically.

The main drum always carries 12 straws in successive and different operations. This development represents a giant step formed for higher production of flexible straws.



1.CONSTITUES

This machine mainly by the shaper,the control box ,the hopper,leaves the material transportation to be composed.



2.CHARACTERISTIC

The struture is compact,the automaticity is high,simplicity of operator.

Revolves steadily,limitless adjustable,the production efficiency is high.

Has the output tally function,can the batch warning.

The frequency conversion control,has the barking function.

Has the breakdown automatic stop function.



Main technological parameter:

Length range190 - 260 mm (We can custom-made according to your request)

Power:1.5kw  380v

Capability:200-250 pcs/min we can custom-made according to your request

Outside dimension:1.5*1.8*1.6m

Weight: 1000kg
