Tea Capsule Filling and Sealing Machine

FOB Reference Price:Get Latest Price
$1.00 - $2.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles, Cans, Capsule
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai
Model Number:
GL K-cup Coffee Capsule Filling and Sealing Machine
Power:
5kw
Voltage:
380V-50HZ
Application:
Apparel, Beverage, Commodity, Medical
Weight:
1200KG
Automatic Grade:
Automatic
Certification:
CE
Driven Type:
Mechanical
Dimension(L*W*H):
3000*860*1700mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case/Seaworthy package for K cup Coffee Capsule Filling and Sealing Machine.
Port
Ningbo/Shanghai
Lead Time :
Shipped in 30 days after payment

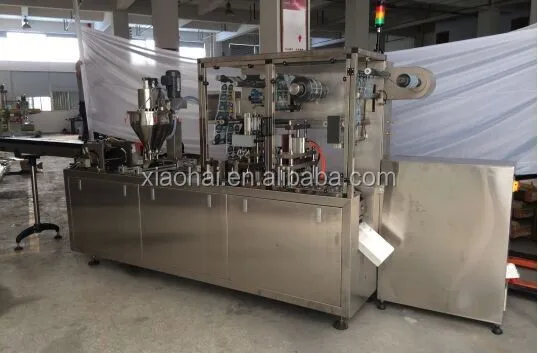

     ♣    K cup Coffee Capsule Filling making Machine

 .jpg



Procedure:

Feed Coffee Cup → Feed filter and press filter (for example K cup filter) → Fill Coffee Powder → Suck Lid Foil onto Cup → Heat Seal Cup → Output Finished Cup.
NITROGEN FLUSH IS BEGINNING FROM FEEDING OUTER CUP TO HEAT SEAL.





   1. Usage:





coffee capsule filling and sealing machine is used for coffee capsules filling with coffee powders(or other kinds of powder products like tea powder, milk powder, rice, wheat powder, cocoa powder etc. )







We have successful experience design machines according to customer’s requirement. The machine absorbing advanced technology in the world, is the new generation of the automatic filling and sealing machine. It has the characters like Omron PLC control,reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, adaptability, simple operation, easy maintenance, cleaning and convenient.








 2. Main Technical Parameters:



No

Item

Spec

1.

Machine Speed

25-30 cups/min/lane

2.

Voltage

3 Phase 220V/60Hz

3.

Total Power

3Kw

4.

Air pressure

≥0.6Mpa/0.1m²

5.

Air consumption

500L/min

6.

Working environment temperature

5-35°C

7.

Relative humidity

≤85%

8.

Machine Dimension

L2050mmXW670mmXH2600mm

9.

Machine Wight

800Kg

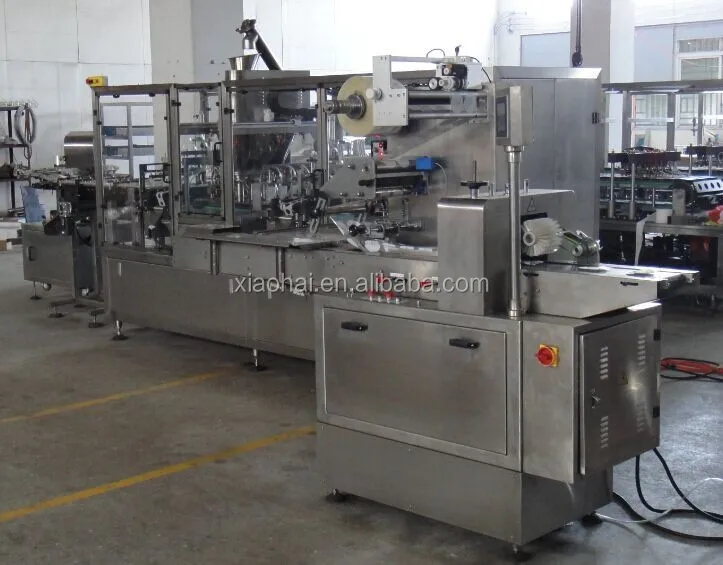

 two lane machine picture with conveyor.jpg60.jpg
