HAS VIDEO Rotary label die cutting machine with slitting function

FOB Reference Price:Get Latest Price
$7,000.00 - $11,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder
Dimension(L*W*H):
1800*1000*1600mm
Weight:
800kg
Condition:
New
Computerized:
No
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai
Model Number:
FQ-320G
Voltage:
220V
Power(W):
1.5KW
Certification:
ISO9001
Slitting speed:
120m/min
Die cutting girth:
240-450mm
Max.width of roll:
320mm
Max.diameter of unwinding roll:
650mm
Max.diameter of Rewinding roll:
Up: 200mm(turret) Down: 650mm
Air shaft size for rewinding:
1",2",3" ect
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
35 Set/Sets per Day
Packaging & Delivery
Packaging Details
wooden case packing
Port
Ningbo port, China
Lead Time :
25 DAYS

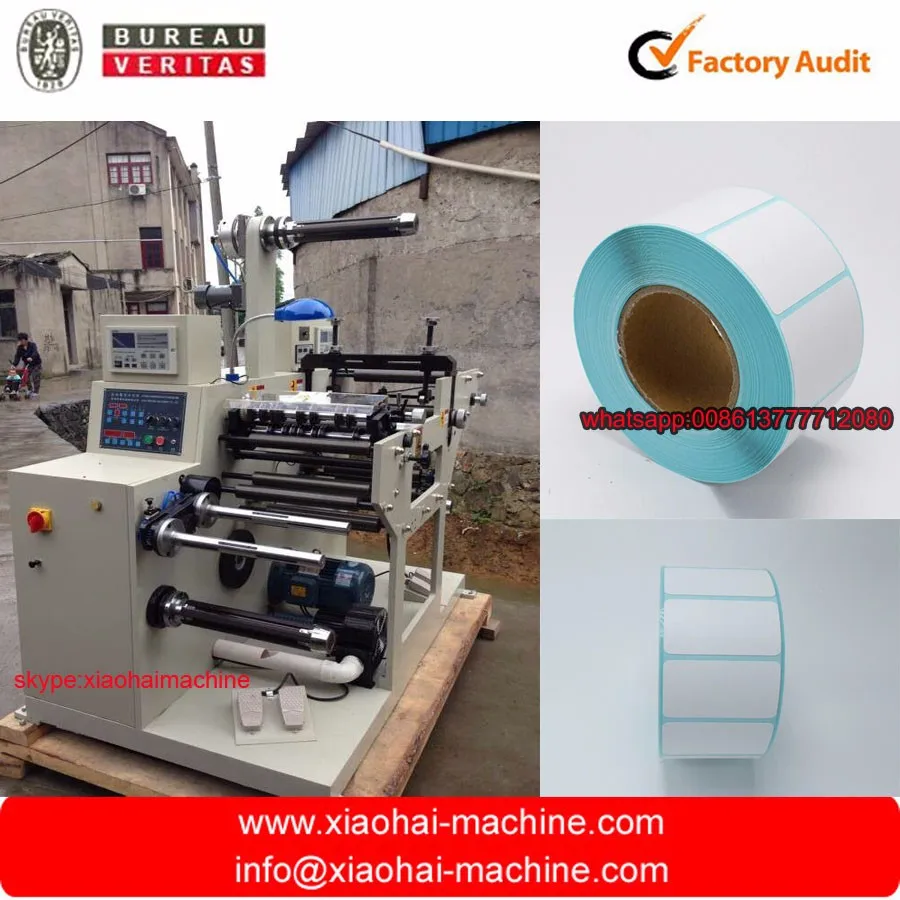

Rotary die cutting-slitting machine with turret rewinder



Characteristics:

1. Unwind shaft with limiting baffle, easy for material fixing. Unwind web guide adopt frame mode, easy for adjusting, and with high precision.

2. Die cutting axle head fixing seat adopt circle design, it is easy for assemble and disassemble, compare with traditional square shape fixing seat, it saves half time. Die cutting pressure adjusting screw arbor is rotation structure, it do not need to take off.

3. Up rewind adopt turret structure to improve work efficiency.

4. Transmission adopt synchronous belt to reduce noise.

5. Unwind, rewind and waste collection all adopt magnetic powder brake/clutch to control, operation stable.

6. Unwind adopt auto tension control for constant tension, rewind adopt taper tension control

7. Unwind, rewind, waste collection air shaft all auto air charge.

8. This machine with function of auto length counting, number counting, length setting, auto stop, ultrasonic sensor web guiding etc.

Main technical parameters:



Slitting speed

120m/min

Die cutting speed

120m/min

Die cutting girth

240-450mm

Max.width of roll

320mm

Max.diameter of unwinding roll

650mm

Max.diameter of Rewinding roll

Up: 200mm(turret)

Down: 650mm

Overall size

1800*1000*1600mm

Weight

800KG

Power supply

AC220V
