2017 best sale paper carton box window patching machine, paper box window patching machine

FOB Reference Price:Get Latest Price
$12,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Product Type:
window patching machine
Processing Type:
paper box window patching machine
Power(W):
4.4kw
Condition:
New
Place of Origin:
China
Brand Name:
Xiaohai
Model Number:
T-560
Voltage:
380V
Weight:
2000kg
Certification:
CE
Dimension(L*W*H):
4500x1200x1600mm
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case packing
Port
Ningbo port, China
Lead Time :
35 days



Features:

The Window Patching Machine is widely used in the window patching to the liquor box,

 gift box, tissue box, cosmetic box, toy box, etc. It can be used for window film cutting,

creasing, gluing and patching of card.



Machine details:



1)The paper feeder parts is controlled by the servo motor, the paper pile make the intermittent movement

in the process of the paper feeding, the belts operate long life,

process the paper products to the conveying parts steady and orderly.



2)The paper conveying parts installed the four conveying chains with the four pushing blocks,

 it can be adjusted according to the paper shape.



3)The gluing parts adopt the adjustable parts gluing structure,

it is convenient for adjustable according to the paper requirement and the gluing position,

save the gluing quantity, it is easy for pulling out the gluing parts, convenient for washing.

The gluing roller stopped the gluing when stopped the machine.



4)The cutting parts includes two blades. The upper roller is the cutting

film roller with the two blade, finishing the cutting of the film.



Technical Parameters:



Cardboard weight

g/m2

200-1000

Output per hour

pieces

12000

Blank length

mm

100-560

inch

3.93-22.04

Blank width

mm

100-650

inch

3.93-25.59

Film length

mm

30-260

inch

1.18-10.23

Film width

mm

60-300

inch

2.36-11.81

Film thickness

mm

0.05-0.25

Connected load

kw

4.4

Weight

kg

2000

Dimensions

mm

4500x1200x1600

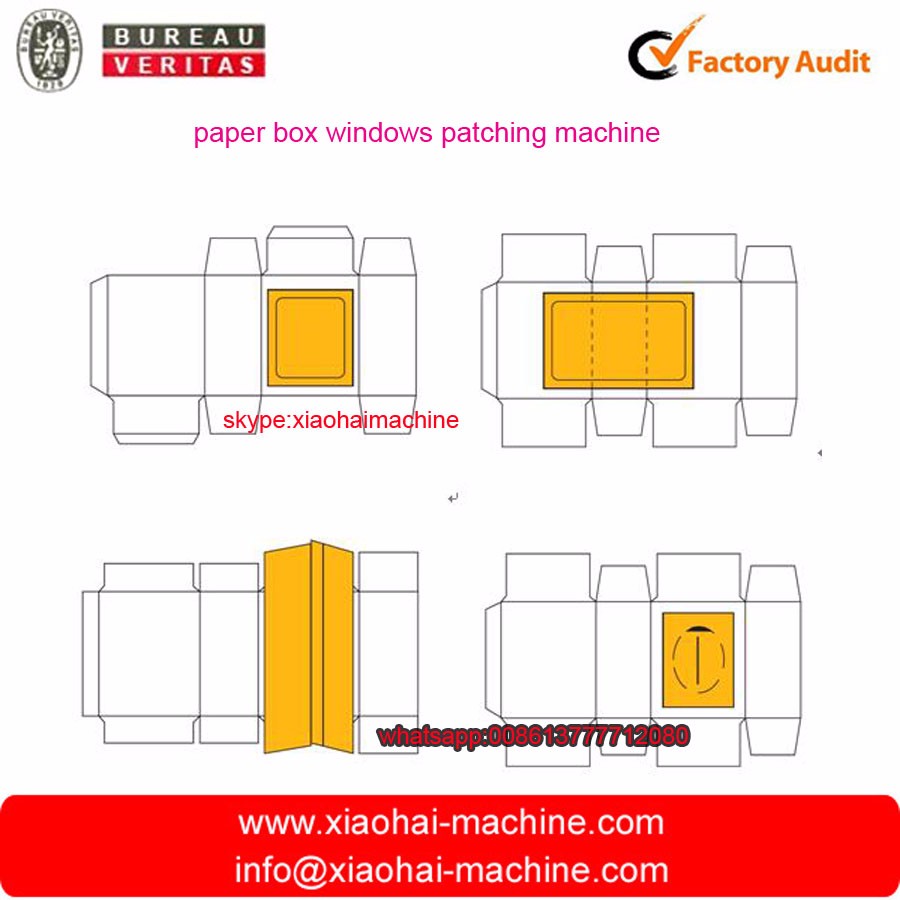

paper box windows patching machine3.jpg
