automatic paper die cutting machine for confetti

FOB Reference Price:Get Latest Price
$10,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HH-320
Power(W):
1.5KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
as you want (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Die-cutting Machine
Dimension(L*W*H):
1800*1200*1800mm
Weight:
800kg
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Computerized:
No
Place of Origin:
Zhejiang, China
Brand Name:
Xiaohai
Voltage:
220V
Certification:
ISO9001
Die cutting speed:
80m/min
Die cutting girth:
200-500mm
Effective width of roll:
320mm
Effective diameter of unwinding roll:
700mm
Supply Ability
Supply Ability:
35 Set/Sets per Day
Packaging & Delivery
Packaging Details
wooden case packing
Port
Ningbo port, China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

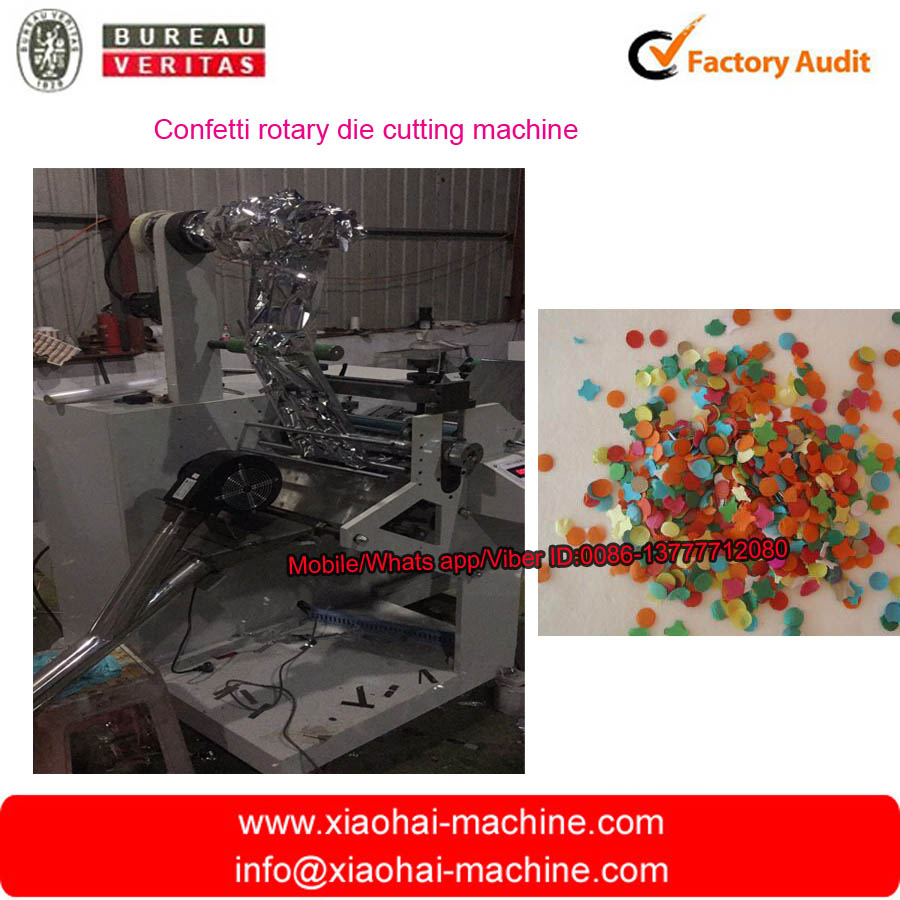

Rotary die cutting machine



Characteristics:

1. Unwind shaft with limiting baffle, easy for material fixing. Unwind web guide adopt frame mode, easy for adjusting, and with high precision.

2. Die cutting axle head fixing seat adopt circle design, it is easy for assemble and disassemble, compare with traditional square shape fixing seat, it saves half time. Die cutting pressure adjusting screw arbor is rotation structure, it do not need to take off.

3. Transmission adopt synchronous belt to reduce noise.

4. Unwind and waste collection all adopt magnetic powder brake/clutch to control, operation stable.

5. Unwind adopt auto tension control for constant tension, rewind adopt taper tension control

6. Unwind, waste collection air shaft all auto air charge.



Main technical parameters:



Die cutting speed

80m/min

Die cutting girth

240-450mm

Max.width of roll

320mm

Max.diameter of unwinding roll

650mm

Overall size

1800*1200*1800mm

Weight

800KG

Power supply

AC220V
