HAS VIDEO WFQ Horizontal 160meter Per Minute Slitting And Rewinding Machine For Paper Roll With Disc Knife

FOB Reference Price:Get Latest Price
$7,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZWF-1300
Power(W):
5.5kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder
Dimension(L*W*H):
3300X2500X2200MM
Weight:
3300kg
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Place of Origin:
Zhejiang, China
Brand Name:
XIAOHAI
Voltage:
380v 220v
Certification:
ISO9001
Computerized:
Yes
Production Capacity:
160m/min
Applicable Industries:
Machinery Repair Shops
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy packing
Port
NINGBO,CHINA
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated





Main Technical Parameter:

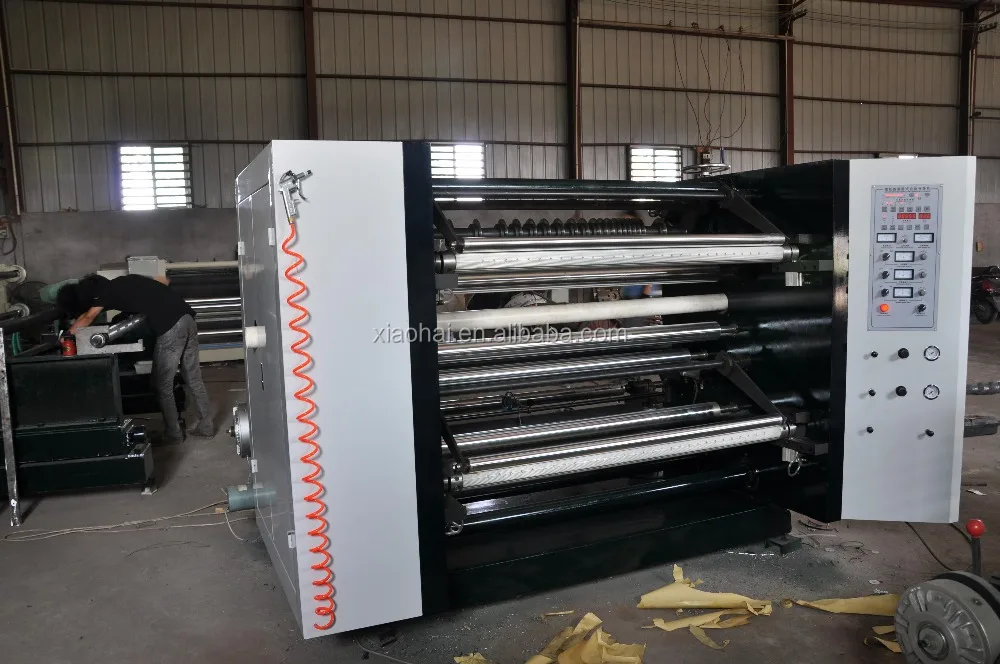

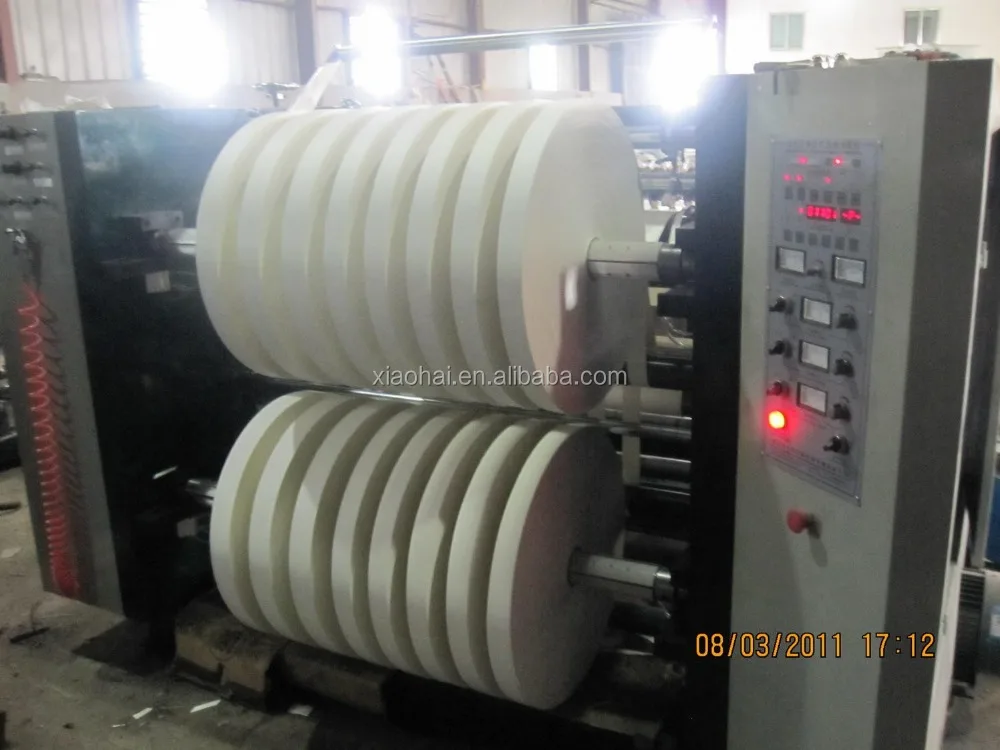

 paper slitting machine 2.jpgpaper slitting machine.jpg

Main Technical Parameter:



1. Slitting Material: Film, Paper Roll etc



2. Slitting Width:25-1300mm



3. Machine Speed: 160m/min



4. Slitting Speed: 150m/min



5. Unwinding Diameter: 800mm  Tension 100N.m   3” Air shaft



6. Rewinding Diameter:2x600mm Tension 100N.m  3” Air shaft



7. Main Motor:4.5KW frequency conversion motor



8. Cutting System: Adopt round blade/flat blade,slitting accuracy:±0.1mm,minimum slitting width:25mm



9. Transmission: Belt



10. Guide Roller: 80 Hard Aluminum Alloy



11. Machine Construction: Alloy Iron



12. Web guide scope:120mm Accuracy:±0.3mm

Configuration:



1. Main Control Part:It has the function of meter counting or length counting,automatic stopping, Speed Adjustment.



Unwinding Tension: Adopt Magnetic Powder control tension 100N.M



Rewinding Tension: Adopt Magnetic Powder control tension 100N.M



Main Motor: Adopt Three Phase AC 5.5KW Frequency Conversion Motor



2. Running and Locking:Pneumatic



3. Lower Voltage Apparatus:Adopt CHNT



4. Pneumatic Component:Adopt Domesitc Mingyou or Jingwei



5. Web Guide: Adopt photoelectric eye



6. Slitting Blade: Scaleplate Orientation,it’s easy to install,and accurate.
